CH-V09-201-S(F)

Active

Floyd Bell Inc

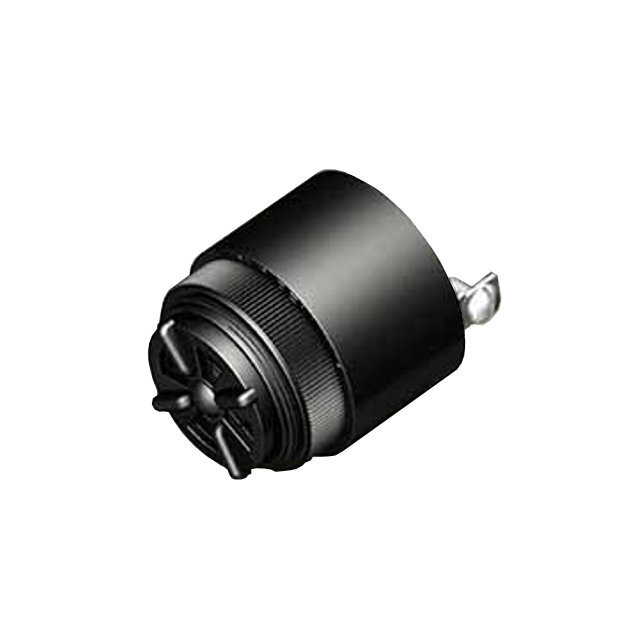

BUZZER PIEZO 120V 35.81MM PNL MT

Search across all available documentation for this part.

Active

Floyd Bell Inc

BUZZER PIEZO 120V 35.81MM PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	CH-V09-201-S(F)

Approval Agency	UR, UL
Current - Supply	40 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	2.9 kHz
Height - Seated (Max) [Max] [z]	1.48 "
Height - Seated (Max) [Max] [z]	37.59 mm
Ingress Protection	IP68 - Dust Tight, Waterproof
Input Type	AC
Operating Mode	Chime
Port Location	Top
Size / Dimension [diameter]	1.41 in
Size / Dimension [diameter]	35.81 mm
Sound Pressure Level (SPL)	93 dB
Technology	Piezo
Termination	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Voltage - Rated	120 VDC

Part	Input Type	Sound Pressure Level (SPL)	Size / Dimension [diameter]	Size / Dimension [diameter]	Current - Supply	Operating Mode	Voltage - Rated	Ingress Protection	Frequency	Driver Circuitry	Termination	Approval Agency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Technology	Port Location
Floyd Bell Inc CH-V09-201-Q(M)	AC	93 dB	1.409 in	35.8 mm	40 mA	Chime	120 VDC	IP68 - Dust Tight Waterproof	2.9 kHz	Indicator Internally Driven	Quick Connect Tab - 0.250" (6.35mm)	UL UR	1.48 "	37.59 mm	Piezo	Top
Floyd Bell Inc CH-V09-201-S(F)	AC	93 dB	1.41 in	35.81 mm	40 mA	Chime	120 VDC	IP68 - Dust Tight Waterproof	2.9 kHz	Indicator Internally Driven	Screw Terminal Quick Connect Tab - 0.250" (6.35mm)	UL UR	1.48 "	37.59 mm	Piezo	Top
Floyd Bell Inc CH-V09-201-W(F)	AC	93 dB	1.409 in	35.8 mm	40 mA	Chime	120 VDC		2.9 kHz		Wire Leads		1.53 in	38.86 mm	Piezo	Top
Floyd Bell Inc CH-V09-201-S(M)	AC	93 dB	1.409 in	35.8 mm	40 mA	Chime	120 VDC	IP68 - Dust Tight Waterproof	2.9 kHz	Indicator Internally Driven	Screw Terminal Quick Connect Tab - 0.250" (6.35mm)	UL UR	1.48 "	37.59 mm	Piezo	Top
Floyd Bell Inc CH-V09-201-W(M)	AC	93 dB	1.41 in	35.81 mm	40 mA	Chime	120 VDC		2.9 kHz		Wire Leads		1.53 in	38.86 mm	Piezo	Top
Floyd Bell Inc CH-V09-201-Q(F)	AC	93 dB	1.41 in	35.81 mm	40 mA	Chime	120 VDC	IP68 - Dust Tight Waterproof	2.9 kHz	Indicator Internally Driven	Quick Connect Tab - 0.250" (6.35mm)	UL UR	1.48 "	37.59 mm	Piezo	Top
