BH2/3A-3
ActiveMPD (Memory Protection Devices)

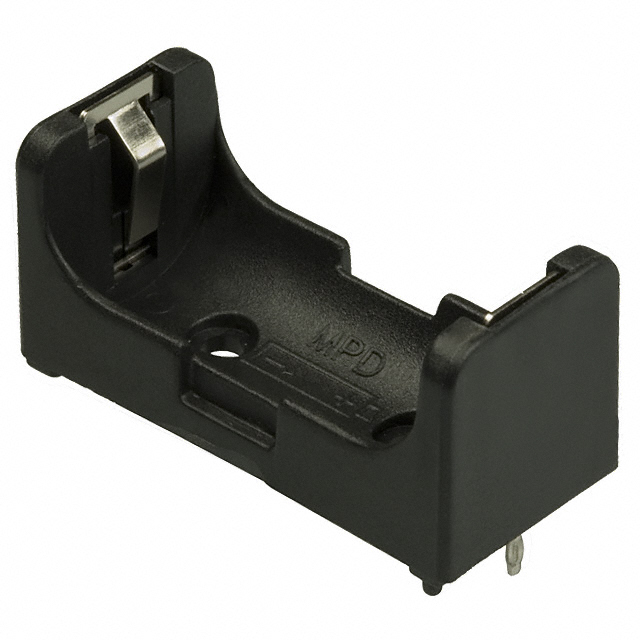

BATTERY HOLDER 2/3A PC PIN
Deep-Dive with AI
Search across all available documentation for this part.
BH2/3A-3
ActiveMPD (Memory Protection Devices)
BATTERY HOLDER 2/3A PC PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BH2/3A-3 |
|---|---|
| Battery Cell Size | 2/3A |
| Battery Type, Function | Cylindrical, Holder |
| Height Above Board | 0.78 in |
| Height Above Board | 19.81 mm |
| Number of Cells | 1 |
| Operating Temperature [Max] | 180 °C |
| Operating Temperature [Min] | -55 °C |
| Style | Holder (Open) |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.19 | |
| 10 | $ 1.00 | |||
| 50 | $ 0.88 | |||
| 100 | $ 0.83 | |||
| 300 | $ 0.76 | |||
| 500 | $ 0.72 | |||
| 1000 | $ 0.69 | |||
Description
General part information
BH2/3 Series
Battery Holder (Open) 2/3A 1 Cell PC Pin
Documents
Technical documentation and resources
No documents available
