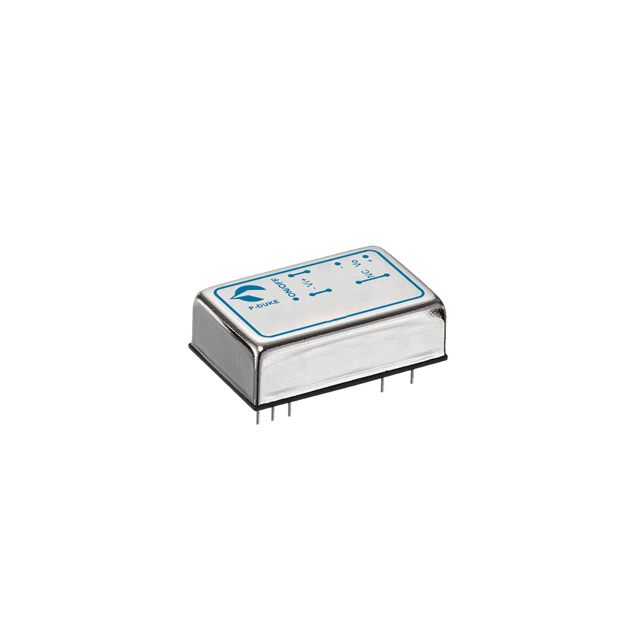

FKC08-48S12
ActiveP-DUKE Technology
DC DC CONVERTER 12V 8W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FKC08-48S12
ActiveP-DUKE Technology
DC DC CONVERTER 12V 8W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FKC08-48S12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 666 mA |
| Efficiency | 86 % |
| Features | Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 9 PC Pad |
| Package / Case | 24-DIP Module |
| Power (Watts) | 8 W |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
FKC08 Series
Isolated Module DC DC Converter 1 Output 12V 666mA 36V - 75V Input
