FI3D096AK

Active

Belden Inc.

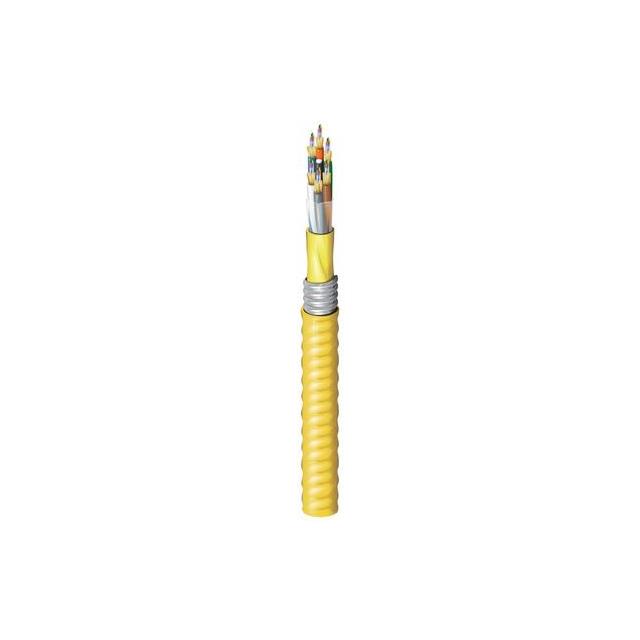

CBL FIBER OPTIC 125UM MULTIMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FI3D096AK

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	50 µm
Features	Armored
Features	96 Fibers
Jacket (Insulation) Diameter [diameter]	1.23 in
Jacket (Insulation) Diameter [diameter]	31.24 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Aqua
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Ratings	OFCP
Style	Multiple Fibers
Tensile Strength	40.8 kg
Type	Multimode

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Type	Jacket Color	Cladding Diameter [diameter]	Style	Features	Features	Core Diameter [diameter]	Tensile Strength	Operating Temperature [Min]	Operating Temperature [Max]	Ratings
Belden Inc. FI3D096RK	24.21 mm	0.953 "	Poly-Vinyl Chloride (PVC)	Multimode	Aqua	125 µm	Multiple Fibers	Rip Cord	96 Fibers	50 µm	40.8 kg	-20 C	70 °C	OFNR
Belden Inc. FI3D096PK	22.02 mm	0.867 in	Poly-Vinyl Chloride (PVC)	Multimode	Aqua	125 µm	Multiple Fibers	Rip Cord	96 Fibers	50 µm	40.8 kg	0 °C	70 °C	OFNP
Belden Inc. FI3D096AK	31.24 mm	1.23 in	Poly-Vinyl Chloride (PVC)	Multimode	Aqua	125 µm	Multiple Fibers	Armored	96 Fibers	50 µm	40.8 kg	0 °C	70 °C	OFCP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 21.14

General part information

Fiber Optic Cable Aqua Multimode 125µm

Technical documentation and resources
