2966320

Active

Phoenix Contact

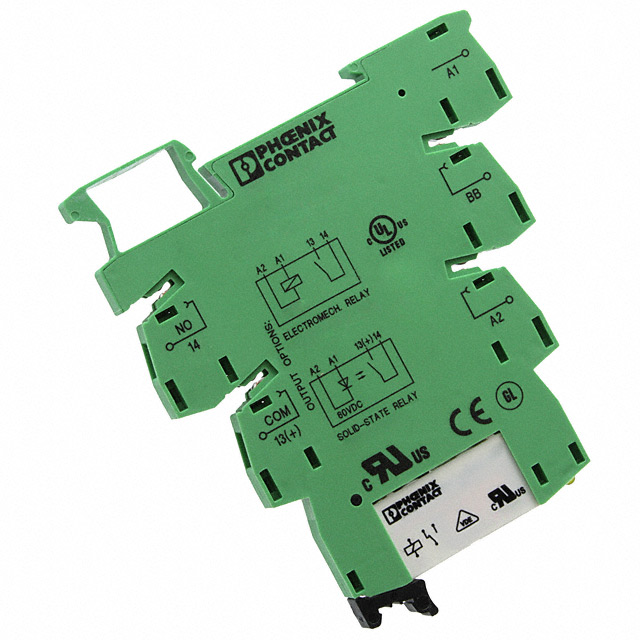

ELECTROMECHANICAL RELAY 110VDC 120VAC 6A SPST-NO(6.2X94X80)MM DIN RAIL RELAY MODULE

Search across all available documentation for this part.

Active

Phoenix Contact

ELECTROMECHANICAL RELAY 110VDC 120VAC 6A SPST-NO(6.2X94X80)MM DIN RAIL RELAY MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	2966320

Approval Agency	cULus, DNV, UL, EAC
Coil Current	3.5 mA
Coil Resistance	34.29 kOhms
Coil Type	Non Latching
Coil Voltage	120 VAC, 120 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Gold (Au), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	50 mA
Features	Lighted Indicator, Socket Included
Mounting Type	DIN Rail
Operate Time	6 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Release Time	15 ms
Switching Voltage	36 VDC, 30 VAC
Termination Style	Screw Terminal

Part	Coil Resistance	Relay Type	Contact Form	Coil Voltage	Release Time	Contact Material	Features	Coil Current	Coil Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Mounting Type	Operate Time	Approval Agency	Switching Voltage	Contact Rating (Current)
Phoenix Contact 2966320	34.29 kOhms	General Purpose	SPST-NO (1 Form A)	120 VAC 120 VDC	15 ms	Gold (Au) Silver Tin Oxide (AgSnO)	Lighted Indicator Socket Included	3.5 mA	Non Latching	55 °C	-25 °C	Screw Terminal	DIN Rail	6 ms	cULus DNV EAC UL	30 VAC 36 VDC	50 mA
Phoenix Contact 2966333	71.88 kOhms	General Purpose	SPST-NO (1 Form A)	230 VAC	15 ms	Gold (Au) Silver Tin Oxide (AgSnO)	Lighted Indicator Socket Included	3.2 mA	Non Latching	55 °C	-25 °C	Screw Terminal	DIN Rail	7 ms	cULus DNV EAC UL	30 VAC 36 VDC	50 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (1 Form A) DIN Rail
