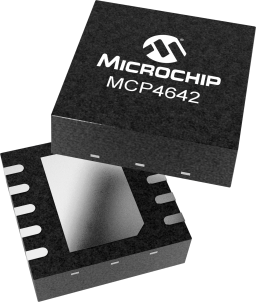

MCP4642T-103E/MF
ActiveDUAL, 7BIT, NV, I2C, RHEO 10 DFN 3X3X0.9MM T/R ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
MCP4642T-103E/MF
ActiveDUAL, 7BIT, NV, I2C, RHEO 10 DFN 3X3X0.9MM T/R ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics for this part
| Specification | MCP4642T-103E/MF |
|---|---|
| Configuration | Rheostat |
| Features | Selectable Address |
| Interface | I2C |
| Memory Type | Non-Volatile |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Number of Taps | 129 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-VFDFN Exposed Pad |
| Resistance - Wiper (Ohms) (Typ) | 75 Ohms |
| Resistance (Ohms) | 10k |
| Supplier Device Package | 10-DFN (3x3) |
| Taper | Linear |
| Temperature Coefficient (Typ) | 150 ppm/°C |
| Tolerance | 20 % |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.40 | |
| Digi-Reel® | 1 | $ 1.40 | ||
| Tape & Reel (TR) | 3300 | $ 1.06 | ||
| Microchip Direct | T/R | 1 | $ 1.40 | |
| 25 | $ 1.16 | |||
| 100 | $ 1.06 | |||
| 1000 | $ 1.02 | |||
| 5000 | $ 1.01 | |||
| Newark | Each (Supplied on Full Reel) | 100 | $ 1.10 | |
Description
General part information
mcp4642 Series
The MCP464X devices are dual channel, non-volatile, 7-bit (129 wiper steps) digital potentiometers with EEPROM and an I2C compatible interface. The MCP464X family is available with end-to-end resistor values of 5KΩ, 10KΩ, 50kΩ and 100KΩ. These devices offer WiperLock™ Technology which allows the user unlimited reprogramming and locking of the wiper setting. It is useful for equipment that requires factory trimming or recalibration. The MCP464X devices offer a variety of configurations simplifying design while minimizing cost, package size and pin count.
