680M7W2103L201

Active

MH Connectors

COMBINATION D SUB CONNECTOR, 680M SERIES, DA-7W2, PLUG, 5, 2, SOLDER ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MH Connectors

COMBINATION D SUB CONNECTOR, 680M SERIES, DA-7W2, PLUG, 5, 2, SOLDER ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	680M7W2103L201

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A, 20 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Number of Positions [custom]	7
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2 (DA, A) - 7W2

Part	Features	Number of Positions [custom]	Number of Positions [custom]	Contact Material	Color	Contact Finish	Dielectric Material	Current Rating (Amps)	Connector Style	Contact Type	Material Flammability Rating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material, Finish	Contact Finish Thickness	Flange Feature	Number of Rows	Shell Size, Connector Layout
MH Connectors 680M7W2103L201	Grounding Indents	7	2	Copper Alloy	Black	Gold	Polybutylene Terephthalate (PBT)	5 A 20 A	Combo D-Sub	Signal and Power	UL94 V-0	Male Pins Plug	155 °C	-55 °C	Nickel Plated Steel	Flash	Housing/Shell (Unthreaded)	2	2 (DA A) - 7W2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

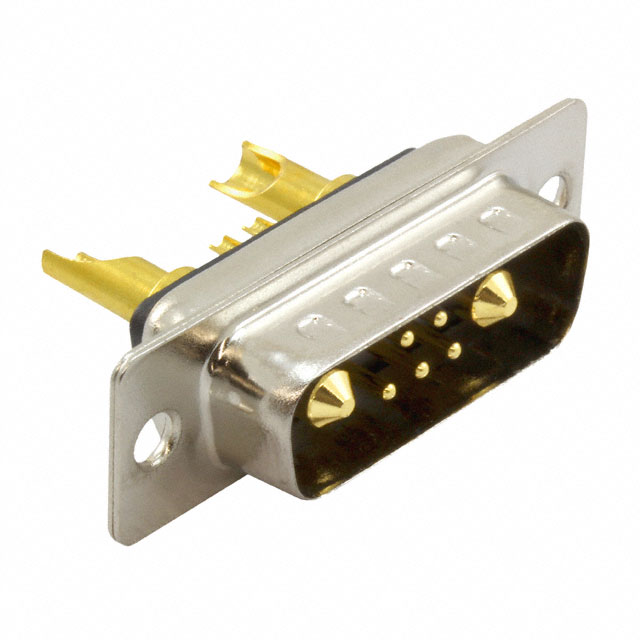

7 (5 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector
