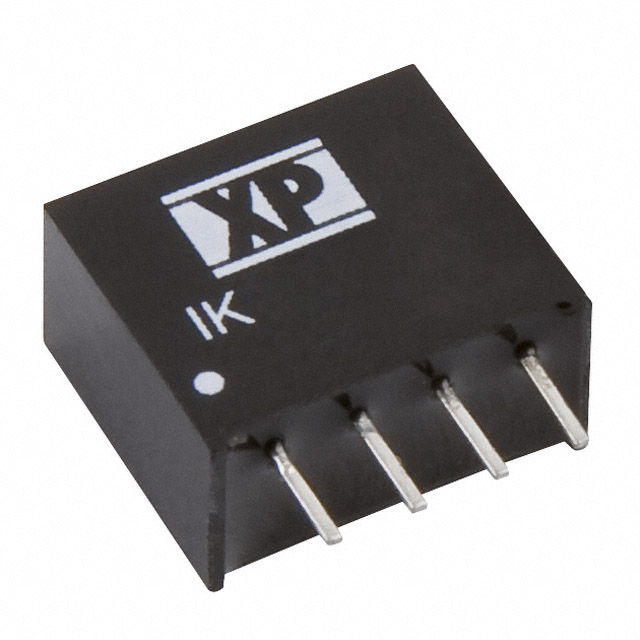

IK4824SA
ObsoleteXP POWER
DC DC CONVERTER 24V 250MW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IK4824SA
ObsoleteXP POWER
DC DC CONVERTER 24V 250MW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IK4824SA |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 10.4 mA |
| Efficiency | 50 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SIP Module |
| Power (Watts) | 250 mW |
| Size / Dimension [x] | 0.46 in |
| Size / Dimension [x] | 11.7 mm |
| Size / Dimension [y] | 0.24 " |
| Size / Dimension [y] | 6 mm |
| Size / Dimension [z] | 10.2 mm |
| Size / Dimension [z] | 0.4 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 52.8 V |
| Voltage - Input (Min) [Min] | 43.2 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IK4824 Series
Isolated Module DC DC Converter 1 Output 24V 10.4mA 43.2V - 52.8V Input
