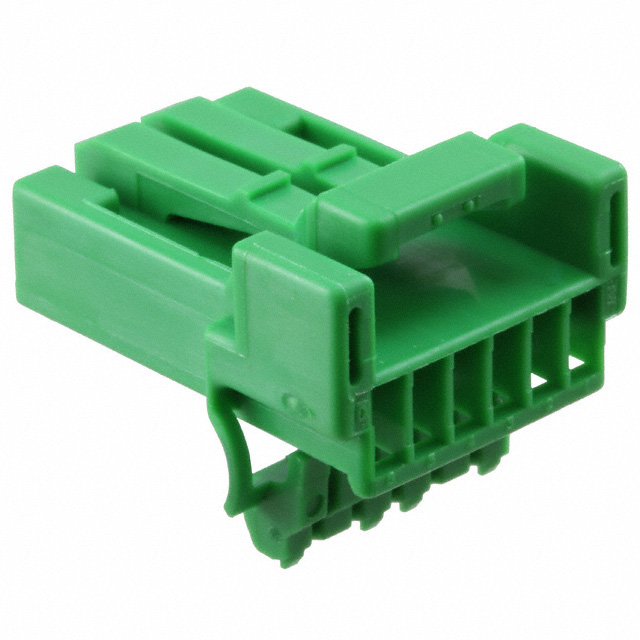

IL-AG5-6S-S3C1

Active

JAE Electronics

CONN RCPT HSG 6POS 2.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Transportation Guide

IL-AG5-6S-S3C1

Active

JAE Electronics

CONN RCPT HSG 6POS 2.50MM

Deep-Dive with AI

DocumentsDatasheet Transportation Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IL-AG5-6S-S3C1

Color	Green
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm

IL-AG5-6 Series

Part	Contact Finish - Post	Number of Rows	Applications	Contact Length - Post	Contact Length - Post	Mounting Type	Insulation Height	Insulation Height	Connector Type	Number of Positions Loaded	Insulation Color	Contact Shape	Current Rating (Amps)	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Shrouding	Fastening Type	Contact Type	Pitch - Mating	Pitch - Mating	Contact Material	Contact Length - Mating	Contact Length - Mating	Style	Insulation Material	Features	Mated Stacking Heights	Overall Contact Length	Overall Contact Length	Color	Note	Pitch [x]	Pitch [x]	Contact Termination
JAE Electronics IL-AG5-6P-S3L2-LGY	Tin	1	Automotive	3.5 mm	0.138 in	Through Hole Right Angle	0.591 in	15 mm	Header	All	Gray	Square	3 A	6	85 °C	-40 °C	Solder	Shrouded - 4 Wall	Push-Pull	Male Pin	2.5 mm	0.098 in	Brass	8.4 mm	0.331 in	Board to Cable/Wire	Polybutylene Terephthalate (PBT)	Board Guide
JAE Electronics IL-AG5-6P-S3T2	Tin	1	Automotive	3.5 mm	0.138 in	Through Hole	0.717 in	18.2 mm	Header	All	Green	Square	3 A	6	85 °C	-40 °C	Solder	Shrouded - 4 Wall	Push-Pull	Male Pin	2.5 mm	0.098 in	Brass	8.4 mm	0.331 in	Board to Cable/Wire	Polybutylene Terephthalate (PBT)		28.2 mm	15.09 mm	0.594 in
JAE Electronics IL-AG5-6S-S3C1		1				Free Hanging (In-Line)			Receptacle					6	85 °C	-40 °C			Latch Lock	Female Socket							Polybutylene Terephthalate (PBT)					Green	Contacts Not Included	0.098 in	2.5 mm	Crimp
JAE Electronics IL-AG5-6P-S3L2	Tin	1	Automotive	3.5 mm	0.138 in	Through Hole Right Angle	0.433 in	11 mm	Header	All	Green	Square	3 A	6	85 °C	-40 °C	Solder	Shrouded - 4 Wall	Push-Pull	Male Pin	2.5 mm	0.098 in	Brass	8.4 mm	0.331 in	Board to Cable/Wire	Polybutylene Terephthalate (PBT)	Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.41
		10	$ 0.35
		25	$ 0.31
		50	$ 0.28
		100	$ 0.27
		250	$ 0.24
		500	$ 0.23
		1200	$ 0.19
		3600	$ 0.18

Description

General part information

IL-AG5-6 Series

6 Rectangular Connectors - Housings Receptacle Green 0.098" (2.50mm)

Documents

Technical documentation and resources

Datasheet

Transportation Guide
