896-088-556-202
ActiveEDAC Inc.

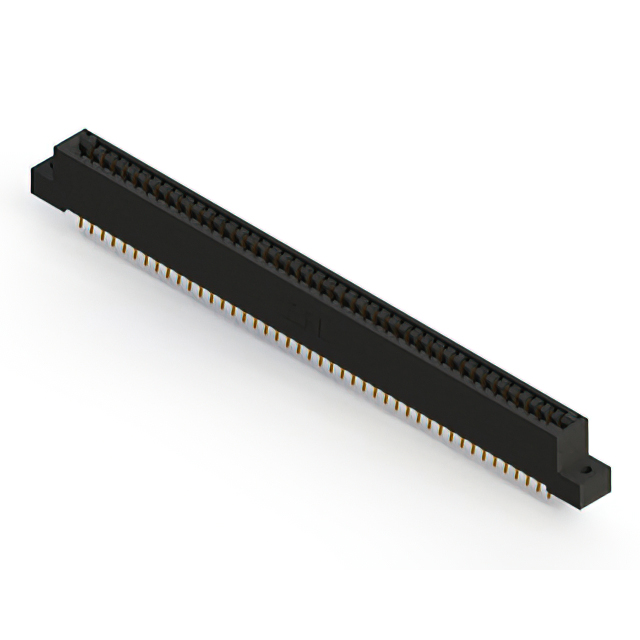

CONN EDGE DUAL FMALE 88POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
896-088-556-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 88POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 896-088-556-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 88 |
| Number of Positions/Bay/Row [custom] | 44 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
896-088 Series
| Part | Features | Color | Read Out | Number of Positions/Bay/Row [custom] | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Contact Finish | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Termination | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Material - Insulation | Mounting Type | Number of Positions | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Card Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Card Extender | Black | Dual | 44 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Gold | Cantilever | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Solder | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | 2 | Polyphenylene Sulfide (PPS) | Board Edge Straddle Mount | 88 | Female | 125 °C | -40 °C | Non Specified - Dual Edge |
EDAC Inc. | Black | Dual | 44 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Gold | Cantilever | 4-40 Threaded Insert Top Mount Opening | Solder | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | 2 | Polyphenylene Sulfide (PPS) | Through Hole | 88 | Female | 125 °C | -40 °C | Non Specified - Dual Edge | |||
EDAC Inc. | Black | Dual | 44 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Gold | Cantilever | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Wire Wrap | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | 2 | Polyphenylene Sulfide (PPS) | Through Hole | 88 | Female | 125 °C | -40 °C | Non Specified - Dual Edge | |
EDAC Inc. | Card Extender | Black | Dual | 44 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Gold | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Solder Eyelet(s) | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | 2 | Polyphenylene Sulfide (PPS) | Board Edge Straddle Mount | 88 | Female | 125 °C | -40 °C | Non Specified - Dual Edge | ||
EDAC Inc. | Card Extender | Black | Dual | 44 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Gold | Cantilever | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Solder | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | 2 | Polyphenylene Sulfide (PPS) | Board Edge Straddle Mount | 88 | Female | 125 °C | -40 °C | Non Specified - Dual Edge |
EDAC Inc. | Black | Dual | 44 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Gold | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Wire Wrap | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | 2 | Polyphenylene Sulfide (PPS) | Through Hole | 88 | Female | 125 °C | -40 °C | Non Specified - Dual Edge | |||
EDAC Inc. | Card Extender | Black | Dual | 44 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Gold | Cantilever | 3.96 mm | 0.156 in | Top Mount Opening Unthreaded | Solder Eyelet(s) | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | 2 | Polyphenylene Sulfide (PPS) | Board Edge Straddle Mount | 88 | Female | 125 °C | -40 °C | Non Specified - Dual Edge |
EDAC Inc. | Black | Dual | 44 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Gold | Cantilever | 4-40 Threaded Insert Top Mount Opening | Solder | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | 2 | Polyphenylene Sulfide (PPS) | Through Hole Right Angle | 88 | Female | 125 °C | -40 °C | Non Specified - Dual Edge | |||
EDAC Inc. | Card Extender | Black | Dual | 44 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Gold | Cantilever | M3 Threaded Insert Top Mount Opening | Solder | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | 2 | Polyphenylene Sulfide (PPS) | Board Edge Straddle Mount | 88 | Female | 125 °C | -40 °C | Non Specified - Dual Edge | ||
EDAC Inc. | Card Extender | Black | Dual | 44 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Gold | Cantilever | Solder | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | 2 | Polyphenylene Sulfide (PPS) | Board Edge Straddle Mount | 88 | Female | 125 °C | -40 °C | Non Specified - Dual Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 95.90 | |
Description
General part information
896-088 Series
88 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
