VS-12TTS08HM3

Active

Vishay General Semiconductor - Diodes Division

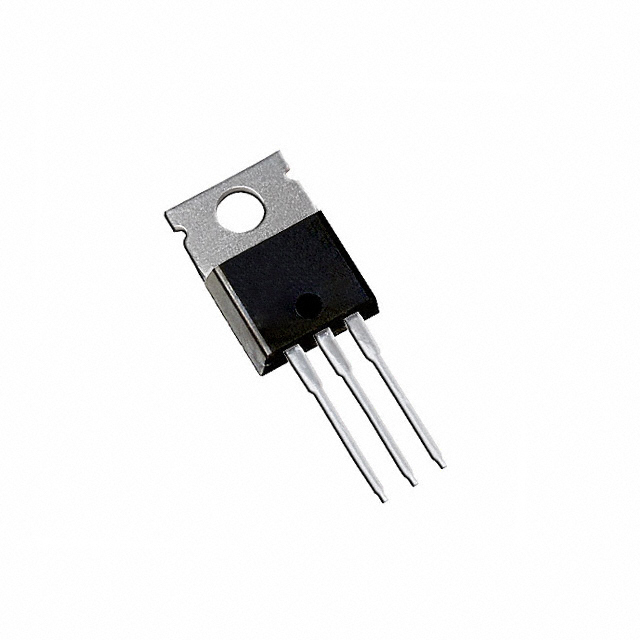

SCR THYRISTOR, AEC-Q101, 12.5A, TO-220AB

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

SCR THYRISTOR, AEC-Q101, 12.5A, TO-220AB

Technical Specifications

Parameters and characteristics for this part

Specification	VS-12TTS08HM3

Current - Gate Trigger (Igt) (Max) [Max]	15 mA
Current - Hold (Ih) (Max) [Max]	30 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	110 A
Current - Off State (Max) [Max]	50 µA
Current - On State (It (AV)) (Max)	8 A
Current - On State (It (RMS)) (Max)	12.5 A
Grade	Automotive
Mounting Type	Through Hole
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	TO-220-3
Qualification	AEC-Q101
SCR Type	Standard Recovery
Supplier Device Package	TO-220-3
Voltage - Gate Trigger (Vgt) (Max) [Max]	1 V
Voltage - Off State	800 V
Voltage - On State (Vtm) (Max)	1.2 V

Part	Voltage - Off State	Voltage - On State (Vtm) (Max)	Current - Hold (Ih) (Max) [Max]	Current - On State (It (AV)) (Max)	Current - Off State (Max) [Max]	Supplier Device Package	Current - Non Rep. Surge 50, 60Hz (Itsm)	Mounting Type	SCR Type	Current - On State (It (RMS)) (Max)	Package / Case	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Grade	Qualification
Vishay General Semiconductor - Diodes Division VS-12TTS08SPBF	800 V	1.2 V	30 mA	8 A	50 µA	TO-263AB (D2PAK)	95 A	Surface Mount	Standard Recovery	12.5 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	1 V	15 mA	125 °C	-40 °C
Vishay General Semiconductor - Diodes Division VS-12TTS08STRL-M3	800 V	1.2 V	30 mA	8 A	1 mA	TO-263AB (D2PAK)	110 A	Surface Mount	Standard Recovery	12.5 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	1 V	15 mA	125 °C	-40 °C
Vishay General Semiconductor - Diodes Division VS-12TTS08HM3	800 V	1.2 V	30 mA	8 A	50 µA	TO-220-3	110 A	Through Hole	Standard Recovery	12.5 A	TO-220-3	1 V	15 mA	125 ¯C	-40 °C	Automotive	AEC-Q101
Vishay General Semiconductor - Diodes Division VS-12TTS08-M3	800 V	1.2 V	30 mA	8 A	50 µA	TO-220-3	95 A	Through Hole	Standard Recovery	12.5 A	TO-220-3	1 V	15 mA	125 °C	-40 °C
Vishay General Semiconductor - Diodes Division 12TTS08S	800 V	1.2 V	30 mA	8 A		TO-263AB (D2PAK)	140 A	Surface Mount	Standard Recovery	12.5 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	1 V	15 mA	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR 800 V 12.5 A Standard Recovery Through Hole TO-220-3
