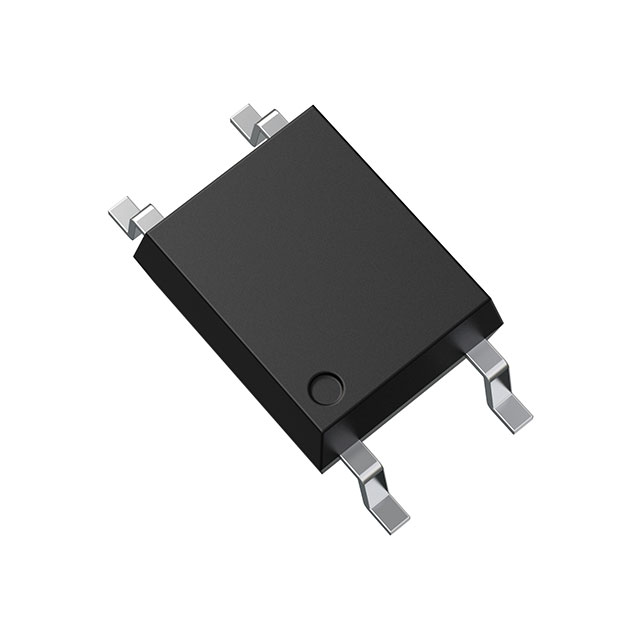

TLP170AM(V4TPL,E
ActiveToshiba Semiconductor and Storage
SSR RELAY SPST-NO 700MA 0-60V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TLP170AM(V4TPL,E
ActiveToshiba Semiconductor and Storage
SSR RELAY SPST-NO 700MA 0-60V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TLP170AM(V4TPL,E |
|---|---|
| Approval Agency | VDE, UL, cUL |
| Load Current | 700 mA |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) [Max] | 300 mOhm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Output Type | DC, AC |
| Package / Case | 6-SMD, Gull Wing |
| Supplier Device Package | 6-SMD |
| Termination Style | Gull Wing |
| Voltage - Load [Max] | 60 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.46 | |
| 10 | $ 1.28 | |||
| 25 | $ 1.21 | |||
| 50 | $ 1.16 | |||
| 100 | $ 1.12 | |||
| 250 | $ 1.06 | |||
| 500 | $ 1.02 | |||
| 1000 | $ 0.97 | |||
| Digi-Reel® | 1 | $ 1.46 | ||
| 10 | $ 1.28 | |||
| 25 | $ 1.21 | |||
| 50 | $ 1.16 | |||
| 100 | $ 1.12 | |||
| 250 | $ 1.06 | |||
| 500 | $ 1.02 | |||
| 1000 | $ 0.97 | |||
| Tape & Reel (TR) | 3000 | $ 0.91 | ||
| 6000 | $ 0.88 | |||
| 9000 | $ 0.86 | |||
Description
General part information
TLP170 Series
Solid State SPST-NO (1 Form A) 6-SMD, Gull Wing
