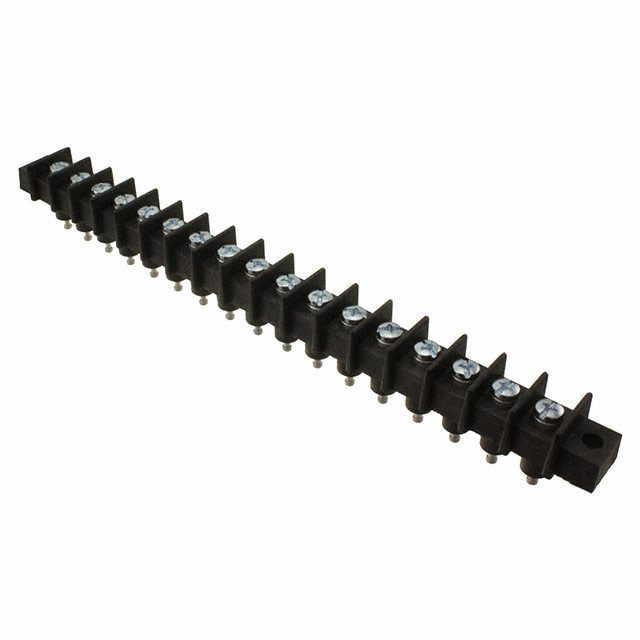

GFTX-17

Active

Curtis Industries

BLACK BARRIER TERMINAL BLOCKS ROHS

Search across all available documentation for this part.

Active

Curtis Industries

BLACK BARRIER TERMINAL BLOCKS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	GFTX-17

Barrier Type	2 Wall (Dual)
Bottom Termination	Solder Turret, Insulated
Color	Black
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	17
Number of Rows	1
Number of Wire Entries	17
Operating Temperature	110 °C
Pitch [x]	11.12 mm
Pitch [x]	0.438 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

Part	Operating Temperature	Number of Wire Entries	Number of Circuits	Bottom Termination	Terminal Block Type	Pitch [x]	Pitch [x]	Terminal Screw Material	Features	Wire Gauge [Min]	Wire Gauge [Max]	Material Flammability Rating	Color	Material - Insulation	Mounting Type	Barrier Type	Current Rating (Amps)	Number of Rows	Top Termination	Number of Circuits [custom]
Curtis Industries GFTX-17	110 °C	17	17	Solder Turret Insulated	Barrier Block	11.12 mm	0.438 in	Steel	Flange	12 AWG	22 AWG	UL94 V-0	Black	Polyphenylene Oxide (PPO)	Chassis Panel	2 Wall (Dual)	20 A	1	Screws
Curtis Industries GFTX-12	110 °C	12	12	Solder Turret Insulated	Barrier Block	11.12 mm	0.438 in	Steel	Flange	12 AWG	22 AWG	UL94 V-0	Black	Polyphenylene Oxide (PPO)	Chassis Panel	2 Wall (Dual)	20 A	1	Screws
Curtis Industries GFTX-8	110 °C	8		Solder Turret Insulated	Barrier Block	11.12 mm	0.438 in	Steel	Flange	12 AWG	22 AWG	UL94 V-0	Black	Polyphenylene Oxide (PPO)	Chassis Panel	2 Wall (Dual)	20 A	1	Screws	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

17 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
