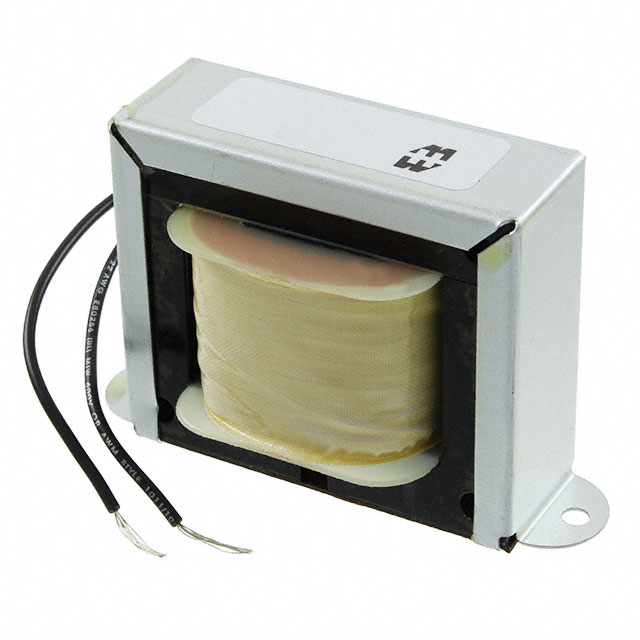

159ZJ

Active

Hammond Manufacturing

FIXED IND 10MH 5A 160 MOHM CHASS

Search across all available documentation for this part.

Active

Hammond Manufacturing

FIXED IND 10MH 5A 160 MOHM CHASS

Technical Specifications

Parameters and characteristics for this part

Part	Tolerance	Shielding	DC Resistance (DCR)	Current Rating (Amps)	Package / Case	Inductance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type
Hammond Manufacturing 159ZG	15 %	Unshielded	250 mOhm	4 A	Nonstandard	15 mH	2.63 in	66.8 mm	Chassis Mount
Hammond Manufacturing 159ZC	15 %	Unshielded	700 mOhm	2 A	Nonstandard	60 mH	2.63 in	66.8 mm	Chassis Mount
Hammond Manufacturing 159ZE	15 %	Unshielded	430 mOhm	3 A	Nonstandard	28 mH	2.63 in	66.8 mm	Chassis Mount
Hammond Manufacturing 159ZJ	15 %	Unshielded	160 mOhm	5 A	Nonstandard	10 mH	2.63 in	66.8 mm	Chassis Mount
Hammond Manufacturing 159ZA	15 %	Unshielded	6 Ohm	1 A	Nonstandard	300 mH	2.63 in	66.8 mm	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 mH Unshielded Inductor 5 A 160mOhm Nonstandard

Technical documentation and resources

No documents available
