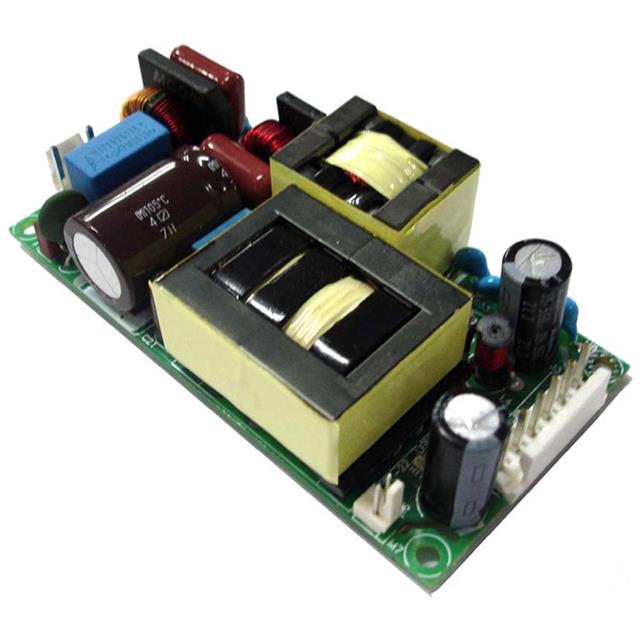

LFWLP225-1001

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 120W

Deep-Dive with AI

Search across all available documentation for this part.

LFWLP225-1001

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 120W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LFWLP225-1001

Applications	ITE (Commercial)
Approval Agency	UL, NEMKO, cUL, CE, CB, CCC
Current - Output 1	10 A
Efficiency	92 %
Features	PFC, Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	225 W, 120 W
Standard Number	62368-1
Type	Open Frame
Voltage - Input	390 VDC
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

WLP225 Series

Part	Voltage - Input [Max]	Voltage - Input	Voltage - Input [Min]	Voltage - Isolation	Type	Applications	Mounting Type	Standard Number	Features	Power (Watts)	Current - Output 1	Number of Outputs	Approval Agency	Efficiency	Voltage - Output 1	For Use With/Related Products	Accessory Type
EOS Power India Private Ltd LFWLP225-1006	264 VAC	390 VDC	85 VAC	3000 V	Open Frame	ITE (Commercial)	Chassis Mount	62368-1	Adjustable Output PFC Universal Input	120 W 225 W	2.07 A	1	CB CCC CE cUL NEMKO UL
EOS Power India Private Ltd LFWLP225-1305	264 VAC	390 VDC	85 VAC	3000 V	Open Frame	ITE (Commercial)	Chassis Mount	62368-1	Adjustable Output PFC Universal Input	120 W 225 W	4 A	1	CB CCC CE cUL NEMKO UL	93 %	30 V
EOS Power India Private Ltd LFWLP225-1002	264 VAC	390 VDC	85 VAC	3000 V	Open Frame	ITE (Commercial)	Chassis Mount	62368-1	Adjustable Output PFC Universal Input	120 W 225 W	8 A	1	CB CCC CE cUL NEMKO UL	92 %	15 V
EOS Power India Private Ltd LFWLP225-1302	264 VAC	390 VDC	85 VAC	3000 V	Open Frame	ITE (Commercial)	Chassis Mount	62368-1	Adjustable Output PFC Universal Input	120 W 225 W	8 A	1	CB CCC CE cUL NEMKO UL	92 %	15 V
EOS Power India Private Ltd LFWLP225-1304	264 VAC	390 VDC	85 VAC	3000 V	Open Frame	ITE (Commercial)	Chassis Mount	62368-1	Adjustable Output PFC Universal Input	120 W 225 W	2.5 A	1	CB CCC CE cUL NEMKO UL	94 %	48 V
EOS Power India Private Ltd LFWLP225-1004	264 VAC	390 VDC	85 VAC	3000 V	Open Frame	ITE (Commercial)	Chassis Mount	62368-1	Adjustable Output PFC Universal Input	120 W 225 W	2.5 A	1	CB CCC CE cUL NEMKO UL	94 %	48 V
EOS Power India Private Ltd LFWLP225-CK																LFWLP225 Series	Cover Assembly
EOS Power India Private Ltd LFWLP225-1001	264 VAC	390 VDC	85 VAC	3000 V	Open Frame	ITE (Commercial)	Chassis Mount	62368-1	Adjustable Output PFC Universal Input	120 W 225 W	10 A	1	CB CCC CE cUL NEMKO UL	92 %	12 V
EOS Power India Private Ltd LFWLP225-1301	264 VAC	390 VDC	85 VAC	3000 V	Open Frame	ITE (Commercial)	Chassis Mount	62368-1	Adjustable Output PFC Universal Input	120 W 225 W	10 A	1	CB CCC CE cUL NEMKO UL	92 %	12 V
EOS Power India Private Ltd LFWLP225-1005	264 VAC	390 VDC	85 VAC	3000 V	Open Frame	ITE (Commercial)	Chassis Mount	62368-1	Adjustable Output PFC Universal Input	120 W 225 W	4 A	1	CB CCC CE cUL NEMKO UL	93 %	30 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 104.81
		72	$ 91.91

Description

General part information

WLP225 Series

Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC, 390VDC Input

Documents

Technical documentation and resources

No documents available
