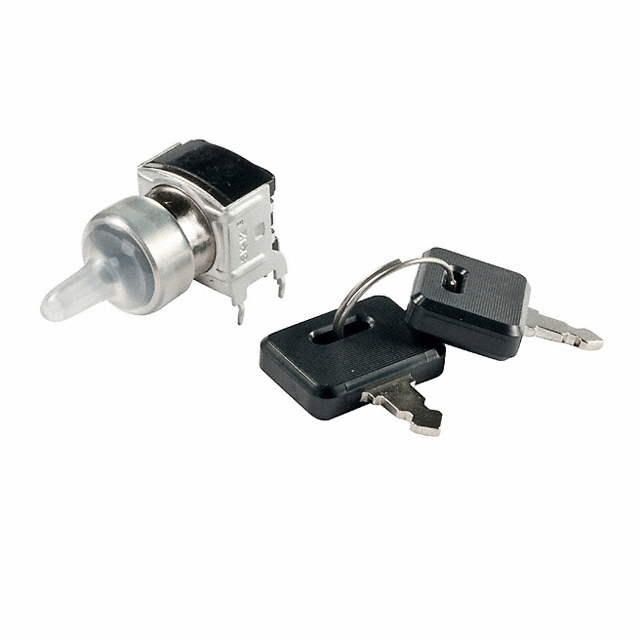

SK12BG30 - SK12BG30

SK12BG30

Active
NKK Switches

KEYLOCK SWITCH, ON-NONE-ON, SPDT, 2 POSITION, SOLDER, 3 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet ENProduct Change Notice EN+1
SK12BG30 - SK12BG30

SK12BG30

Active
NKK Switches

KEYLOCK SWITCH, ON-NONE-ON, SPDT, 2 POSITION, SOLDER, 3 A

Deep-Dive with AI

DocumentsTechnical Data Sheet ENProduct Change Notice EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationSK12BG30
Actuator TypeFlat Key
Angle of Throw90 °
CircuitSPDT
Contact FinishGold
Contact MaterialBeryllium Copper
Contact TimingNon-Shorting
Current Rating (Amps)0.4 VA
Electrical Life10000 Cycles
FeaturesProcess Sealed
Key Removable Positions1 only
Mechanical Life30000 Steps
Mounting TypeThrough Hole, Right Angle
Number of Positions2
Operating Temperature [Max]70 °C
Operating Temperature [Min]-25 °C
Switch FunctionOn-On
Termination StylePC Pin
Voltage Rating - AC28 V
Voltage Rating - DC28 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 16.98
10$ 15.22
25$ 14.55
50$ 13.80
100$ 13.30
250$ 12.46
500$ 11.54
NewarkEach 1$ 32.17
5$ 30.56
10$ 28.32
25$ 25.84
50$ 22.36
100$ 20.87
250$ 19.01

Description

General part information

SK12BG Series

Keylock Switch 2 Position SPDT 0.4VA (AC/DC) 28 VAC 28 VDC Through Hole, Right Angle
