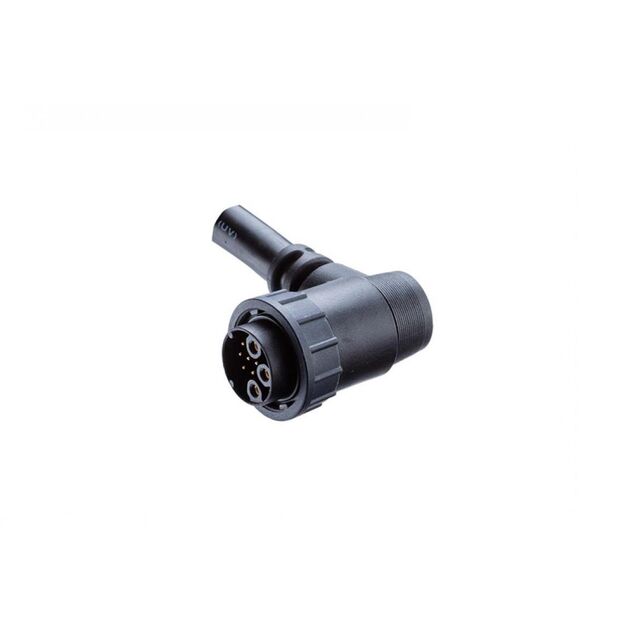

DCD-12AFDM-LR7A10
ActiveAmphenol LTW
CBL 12POS PLUG RA TO WIRE 32.8'
Deep-Dive with AI
Search across all available documentation for this part.
DCD-12AFDM-LR7A10
ActiveAmphenol LTW
CBL 12POS PLUG RA TO WIRE 32.8'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DCD-12AFDM-LR7A10 |
|---|---|
| 1st Connector Gender | Male Pins, Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 12 |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation [custom] | Keyed |
| 1st Connector Shell Size - Insert | D |
| 1st Connector Type | Plug, Right Angle |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round |
| Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Shielding | Shielded |
| Usage | Industrial Environments |
DCD-12AFDM Series
| Part | Assembly Configuration | 1st Connector Mounting Type | 1st Connector Orientation [custom] | 1st Connector Gender | 1st Connector Type | 1st Connector Number of Positions | Shielding | Ingress Protection | Usage | 1st Connector Number of Positions Loaded | Cable Material | 2nd Connector Type | Length [x] | Length [x] | Color | Cable Type | 1st Connector Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol LTW | Standard | Free Hanging (In-Line) | Keyed | Female Sockets Male Pins | Plug | 12 | Shielded | IP67 - Dust Tight Waterproof | Industrial Environments | All | Polyvinyl Chloride (PVC) | Wire Leads | 1 m | 3.28 ft | Black | Round | D |
Amphenol LTW | Standard | Free Hanging (In-Line) | Keyed | Female Sockets Male Pins | Plug Right Angle | 12 | Shielded | IP67 - Dust Tight Waterproof | Industrial Environments | All | Polyvinyl Chloride (PVC) | Wire Leads | Black | Round | D | ||
Amphenol LTW | Standard | Free Hanging (In-Line) | Keyed | Female Sockets Male Pins | Plug | 12 | Shielded | IP67 - Dust Tight Waterproof | Industrial Environments | All | Polyvinyl Chloride (PVC) | Wire Leads | 500 mm | 1.64 ft | Black | Round | D |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 94.22 | |
Description
General part information
DCD-12AFDM Series
Circular Cable Assembly Shielded 32.8' (10.00m)
Documents
Technical documentation and resources
No documents available
