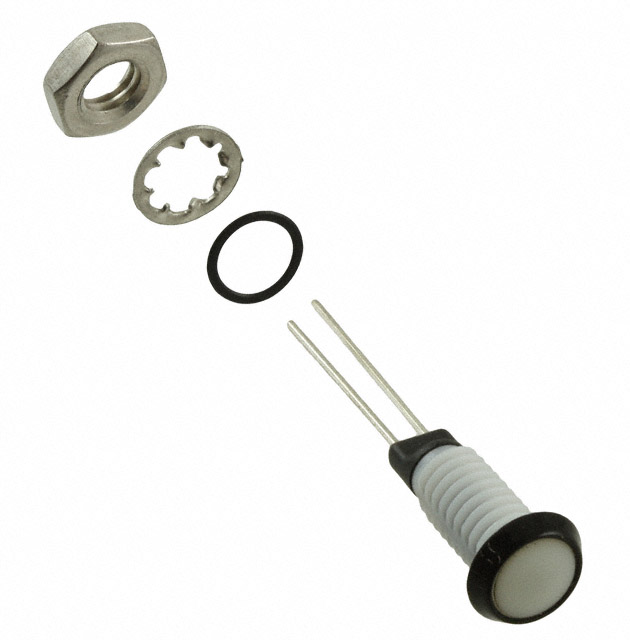

PM3-PAD

Active

Bivar Inc.

LED PANEL MOUNT INDICATOR, AMBER, 48 V, 5.943 MM, 20 MA, 100 MCD, IP67

Search across all available documentation for this part.

Active

Bivar Inc.

LED PANEL MOUNT INDICATOR, AMBER, 48 V, 5.943 MM, 20 MA, 100 MCD, IP67

Technical Specifications

Parameters and characteristics for this part

Specification	PM3-PAD

Ingress Protection	IP67
Lamp Color	Amber
Lens Color	White
Lens Size [diameter]	5.9 mm
Lens Transparency	Diffused
Millicandela Rating	100 mcd
Panel Cutout Dimensions [custom]	4.83 mm
Panel Cutout Dimensions [custom]	0.19 "
Panel Cutout Shape	Round
Ratings	AC/DC
Type	LED
Viewing Angle	120 °
Voltage [Max]	48 V
Voltage [Min]	8 V
Wavelength - Peak	610 nm

Part	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Ingress Protection	Lens Size [diameter]	Lens Transparency	Type	Lamp Color	Ratings	Viewing Angle	Lens Color	Panel Cutout Shape	Wavelength - Peak	Millicandela Rating	Voltage [Min]	Voltage [Max]
Bivar Inc. PM3-PAD	4.83 mm	0.19 "	IP67	5.9 mm	Diffused	LED	Amber	AC/DC	120 °	White	Round	610 nm	100 mcd	8 V	48 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Amber Diffused 120° 8V ~ 48V 20mA
