LQW2BAS3N0J00L

Active

Murata Power Solutions Inc.

FIXED IND 3NH 800MA 60 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LQW2BAS3N0J00L

Active

Murata Power Solutions Inc.

FIXED IND 3NH 800MA 60 MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LQW2BAS3N0J00L

Current Rating (Amps)	800 mA
Frequency - Self Resonant	12.2 GHz
Height - Seated (Max) [Max] [z]	1.52 mm
Height - Seated (Max) [Max] [z]	0.06 "
Inductance	3 nH
Inductance Frequency - Test	250 MHz
Material - Core	Air
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Q @ Freq	65, 1.5 GHz
Shielding	Unshielded
Size / Dimension [x]	2.09 mm
Size / Dimension [x]	0.082 in
Size / Dimension [y]	0.06 in
Size / Dimension [y]	1.53 mm
Tolerance	5 %
Type	Wirewound

LQW2BAS Series

Part	Q @ Freq	Frequency - Self Resonant	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Mounting Type	Inductance Frequency - Test	Shielding	Inductance	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Core	Type	DC Resistance (DCR) [Max]	DC Resistance (DCR)
Murata Power Solutions Inc. LQW2BAS3N0J00L	1.5 GHz 65	12.2 GHz	1.52 mm	0.06 "	5 %	Surface Mount	250 MHz	Unshielded	3 nH	800 mA	0.06 in	1.53 mm	2.09 mm	0.082 in	-55 °C	125 °C	Air	Wirewound
Murata Power Solutions Inc. LQW2BAS15NG00L	50 500 MHz	3.2 GHz	1.52 mm	0.06 "	2 %	Surface Mount	250 MHz	Unshielded	15 nH	600 mA	0.06 in	1.53 mm	2.09 mm	0.082 in	-55 °C	125 °C	Non-Magnetic	Wirewound	170 mOhm
Murata Power Solutions Inc. LQW2BASR27G00L	48 250 MHz	730 MHz	1.52 mm	0.06 "	2 %	Surface Mount	100 MHz	Unshielded	270 nH	350 mA	0.06 in	1.53 mm	2.09 mm	0.082 in	-40 °C	85 °C		Wirewound	1 Ohm
Murata Power Solutions Inc. LQW2BASR33J00L	48 250 MHz	650 MHz	1.52 mm	0.06 "	5 %	Surface Mount	100 MHz	Unshielded	330 nH	0.31 A	0.06 in	1.53 mm	2.09 mm	0.082 in	-55 °C	125 °C	Air	Wirewound	1.4 Ohm
Murata Power Solutions Inc. LQW2BAS15NJ00L	50 500 MHz	3.2 GHz	1.52 mm	0.06 "	5 %	Surface Mount	250 MHz	Unshielded	15 nH	600 mA	0.06 in	1.53 mm	2.09 mm	0.082 in	-55 °C	125 °C	Air	Wirewound	170 mOhm
Murata Power Solutions Inc. LQW2BAS12NJ00L	50 500 MHz	4 GHz	1.52 mm	0.06 "	5 %	Surface Mount	250 MHz	Unshielded	12 nH	600 mA	0.06 in	1.53 mm	2.09 mm	0.082 in	-55 °C	125 °C	Air	Wirewound	150 mOhm
Murata Power Solutions Inc. LQW2BASR22J00L	50 250 MHz	820 MHz	1.52 mm	0.06 "	5 %	Surface Mount	100 MHz	Unshielded	220 nH	400 mA	0.06 in	1.53 mm	2.09 mm	0.082 in	-55 °C	125 °C	Air	Wirewound	700 mOhm
Murata Power Solutions Inc. LQW2BASR68J00L	23 50 MHz	250 MHz	1.52 mm	0.06 "	5 %	Surface Mount	25 MHz	Unshielded	0.68 µH		0.06 in	1.53 mm	2.09 mm	0.082 in	-55 °C	125 °C	Air	Wirewound	2.2 Ohm
Murata Power Solutions Inc. LQW2BAS10NJ00L	60 500 MHz	4.3 GHz	1.52 mm	0.06 "	5 %	Surface Mount	250 MHz	Unshielded	10 nH	600 mA	0.06 in	1.53 mm	2.09 mm	0.082 in	-55 °C	125 °C	Air	Wirewound		100 mOhm
Murata Power Solutions Inc. LQW2BAS22NG00L	55 500 MHz	2.6 GHz	1.52 mm	0.06 "	2 %	Surface Mount	250 MHz	Unshielded	22 nH	0.5 A	0.06 in	1.53 mm	2.09 mm	0.082 in	-55 °C	125 °C	Non-Magnetic	Wirewound		220 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.21
		10	$ 0.17
		25	$ 0.16
		50	$ 0.14
		100	$ 0.12
		250	$ 0.12
		500	$ 0.11
		1000	$ 0.09
	Digi-Reel®	1	$ 0.21
		10	$ 0.17
		25	$ 0.16
		50	$ 0.14
		100	$ 0.12
		250	$ 0.12
		500	$ 0.11
		1000	$ 0.09
	Tape & Reel (TR)	2000	$ 0.09
		4000	$ 0.08
		6000	$ 0.08
		10000	$ 0.07
		50000	$ 0.07

Description

General part information

LQW2BAS Series

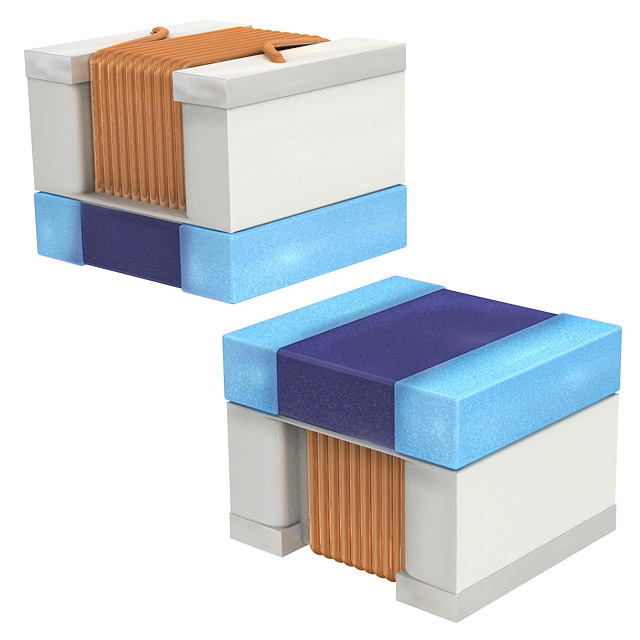

3 nH Unshielded Wirewound Inductor 800 mA 60mOhm Max 0805 (2015 Metric)
