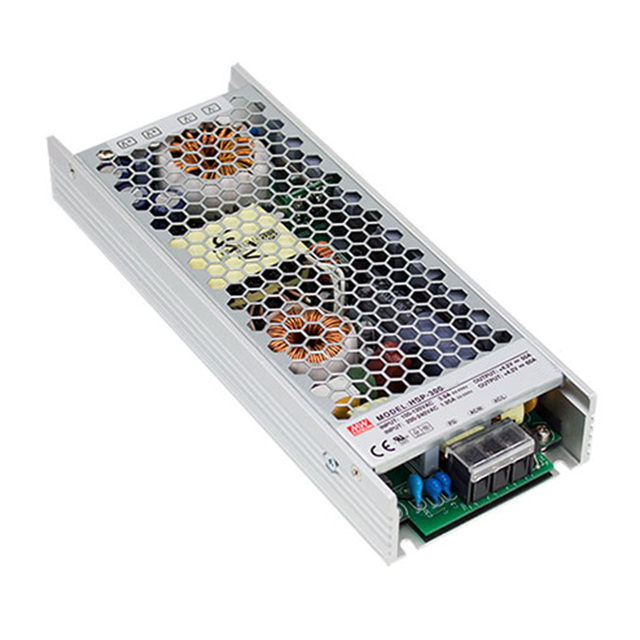

HSP-300-4.2

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 4.2V 252W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 4.2V 252W

Technical Specifications

Parameters and characteristics for this part

Specification	HSP-300-4.2

Applications	ITE (Commercial)
Approval Agency	TUV, cURus, CB, CCC, CE
Current - Output 1	60 A
Efficiency	85 %
Features	PFC, Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	252 W
Size / Dimension [x]	210 mm
Size / Dimension [x]	8.27 in
Size / Dimension [y]	3.19 in
Size / Dimension [y]	81 mm
Size / Dimension [z]	1.22 in
Size / Dimension [z]	31 mm
Type	Conformal Coated, Enclosed
Voltage - Input [Max]	264 VAC, 135 VAC
Voltage - Input [Min]	180 VAC, 90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	4.2 V

Part	Minimum Load Required	Current - Output 1	Efficiency	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Mounting Type	Type	Number of Outputs	Voltage - Isolation	Voltage - Output 1	Applications	Features	Voltage - Input [Min]	Voltage - Input [Max]
MEAN WELL USA Inc. HSP-300-4.2		60 A	85 %	252 W	70 °C	-30 °C	CB CCC CE cURus TUV	3.19 in	210 mm	8.27 in	81 mm	1.22 in	31 mm	Chassis Mount	Conformal Coated Enclosed	1	3000 V	4.2 V	ITE (Commercial)	Adjustable Output PFC Universal Input	90 VAC 180 VAC	135 VAC 264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed, Conformal Coated AC DC Converters 1 Output 4.2V 90 ~ 135 VAC, 180 ~ 264 VAC Input
