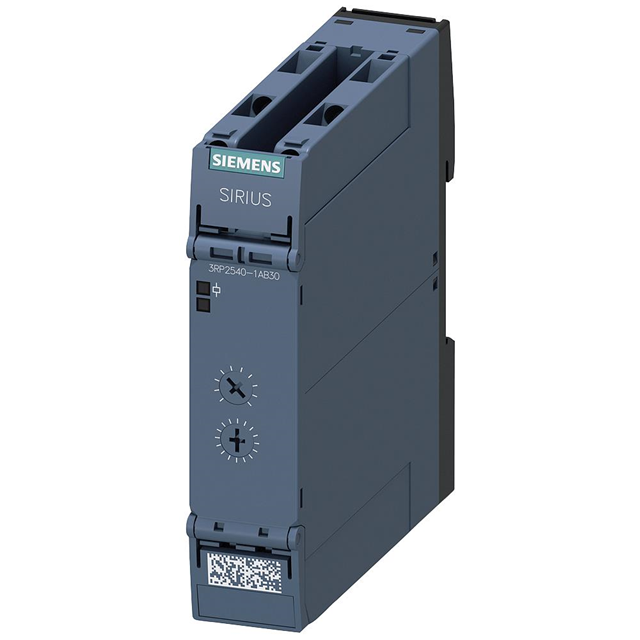

3RP25401AB30

Active

Siemens

RELAY TIME DELAY 600SEC 3A 250V

Search across all available documentation for this part.

Active

Siemens

RELAY TIME DELAY 600SEC 3A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Timing Initiate Method	Timing Adjustment Method	Relay Type	Delay Time [Max]	Delay Time [Min]	Function	Termination Style	Contact Rating @ Voltage	Voltage - Supply	Circuit
Siemens 3RP25402AW30	DIN Rail	12 VAC	240 VAC	Input Voltage	Screwdriver Slot	Mechanical Relay	600 Sec	0.05 Sec	Off-Delay	Spring Terminal	3 A 250 VAC
Siemens 3RP25402AB30	DIN Rail			Input Voltage	Screwdriver Slot	Mechanical Relay	600 Sec	0.05 Sec	Off-Delay	Spring Terminal	3 A 250 VAC	24 VAC
Siemens 3RP25402BB30	DIN Rail			Input Voltage	Screwdriver Slot	Mechanical Relay	600 Sec	0.05 Sec	Off-Delay	Spring Terminal	3 A 250 VAC	24 VAC	DPDT (2 Form C)
Siemens 3RP25401AB30	DIN Rail			Input Voltage	Screwdriver Slot	Mechanical Relay	600 Sec	0.05 Sec	Off-Delay	Screw Terminal	3 A 250 VAC	24 VAC
Siemens 3RP25402BW30	DIN Rail	12 VAC	240 VAC	Input Voltage	Screwdriver Slot	Mechanical Relay	600 Sec	0.05 Sec	Off-Delay	Spring Terminal	3 A 250 VAC		DPDT (2 Form C)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 214.00

General part information

Off-Delay Time Delay Relay SPDT (1 Form C) 0.05 Sec ~ 600 Sec Delay 3A @ 250VAC DIN Rail
