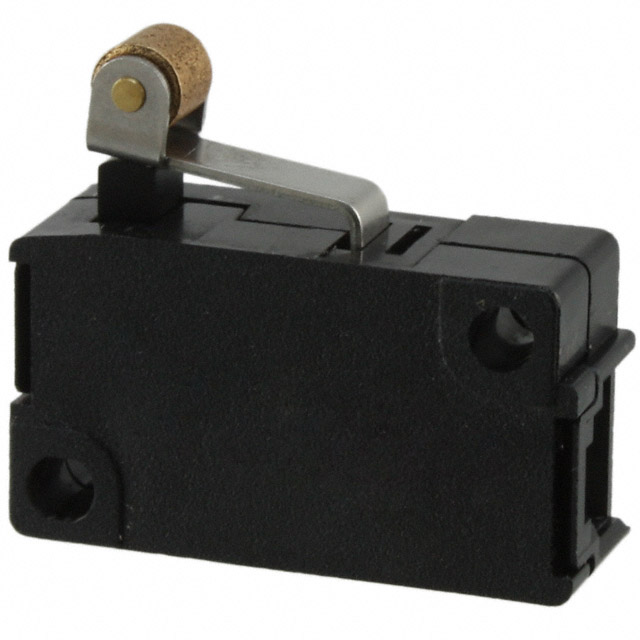

VX10-C1
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT DGTL OC 10MA 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VX10-C1
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT DGTL OC 10MA 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VX10-C1 |
|---|---|
| Actuator Type | Roller, Lever |
| Circuit | Open Collector, Digital |
| Current Rating (Amps) | 10 mA |
| Differential Travel | 0.002 in |
| Differential Travel | 0.05 mm |
| Mounting Type | Chassis Mount |
| Operating Position | 20 mm |
| Operating Position | 0.787 in |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.04 in |
| Overtravel | 1 mm |
| Switch Function | Off-Mom |
| Termination Style | Connector |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
VX10-C Series
Switch Digital, Open Collector Chassis Mount
