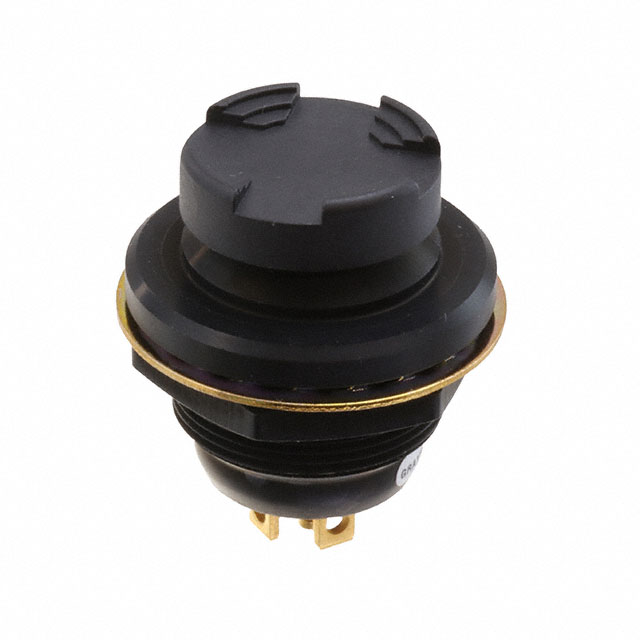

04J-AS-T01

Active

Grayhill Inc.

SWITCH NAVIGATION CASTLE 2A 115V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH NAVIGATION CASTLE 2A 115V

Technical Specifications

Parameters and characteristics for this part

Specification	04J-AS-T01

Actuator Type	Castle
Contact Finish	Gold
Contact Material	Nickel
Current Rating (Amps)	2 A
Electrical Life	100000 Cycles
Ingress Protection	IP68 - Dust Tight, Waterproof
Mechanical Life	100000 Cycles
Operating Force	454 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Output	Digital (Mechanical Switch)
Switch Function	4-Way Directional, Center Select
Termination Style	Solder Lug
Type	2 Axis
Type	Navigation Switch
Voltage Rating - AC	115 V
Voltage Rating - DC	28 V

Part	Termination Style	Features	Electrical Life	Operating Force	Actuator Type	Mechanical Life	Type	Type	Output	Switch Function	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Finish	Voltage Rating - DC	Contact Material	Voltage Rating - AC
Grayhill Inc. 04J-AS-C12	Solder Lug	Gray Actuator	100000 Cycles	454 gf	Conical	100000 Cycles	2 Axis	Navigation Switch	Digital (Mechanical Switch)	4-Way Directional Center Select	IP68 - Dust Tight Waterproof	85 °C	-55 °C	10 mA	Gold	5 V	Nickel
Grayhill Inc. 04J-AS-T01	Solder Lug		100000 Cycles	454 gf	Castle	100000 Cycles	2 Axis	Navigation Switch	Digital (Mechanical Switch)	4-Way Directional Center Select	IP68 - Dust Tight Waterproof	85 °C	-55 °C	2 A	Gold	28 V	Nickel	115 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Navigation Switch, 2 - Axis Digital (Mechanical Switch) Output
