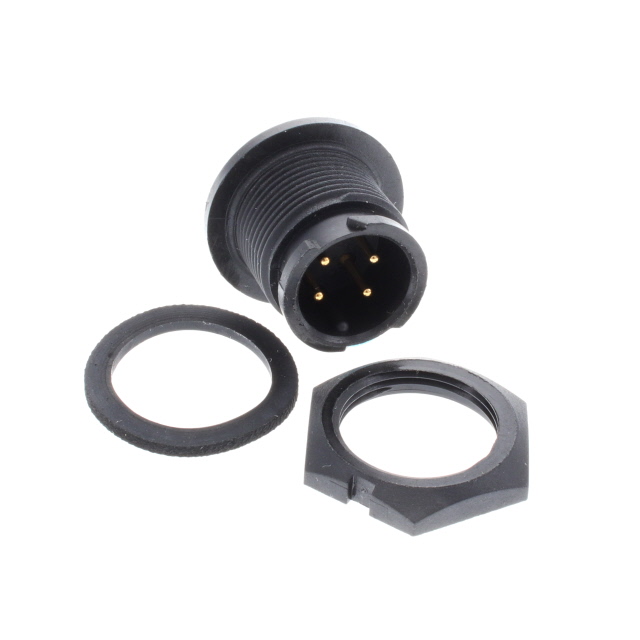

W7281-4PG-P-300

Active

Conxall/Switchcraft

CONN RCPT MALE 4POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 4POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	W7281-4PG-P-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	UV Resistant
Ingress Protection	IP68, IP66, IP67
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Solder
Voltage Rating	300 VAC

Part	Contact Finish - Mating	Insert Material	Color	Connector Type	Mounting Feature	Applications	Number of Positions	Features	Contact Material	Mounting Type	Orientation	Current Rating (Amps)	Ingress Protection	Termination	Fastening Type	Voltage Rating	Backshell Material, Plating	Shielding	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]
Conxall/Switchcraft W7281-4PG-P-300	Gold	Thermoplastic	Black	Male Pins Receptacle	Bulkhead - Front Side Nut	Automotive Communication Systems Instrumentation	4	UV Resistant	Copper Alloy	Panel Mount Through Hole	Keyed	Varies by Wire Gauge	IP66 IP67 IP68	Solder	Bayonet Lock	300 VAC	Thermoplastic	Unshielded	Plastic	85 °C	-40 °C
Conxall/Switchcraft W7281-4SG-P-3ES	Gold	Thermoplastic	Black	Receptacle Female Sockets	Bulkhead - Front Side Nut	Automotive Communication Systems Instrumentation	4	UV Resistant	Copper Alloy	Panel Mount Through Hole	Keyed	Varies by Wire Gauge	IP66 IP67 IP68	Solder	Bayonet Lock	300 VAC	Thermoplastic	Unshielded	Plastic	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 7.19

General part information

4 Position Circular Connector Receptacle, Male Pins Solder

Technical documentation and resources

No documents available
