4STD09SCM99B30X

Active

Amphenol CONEC

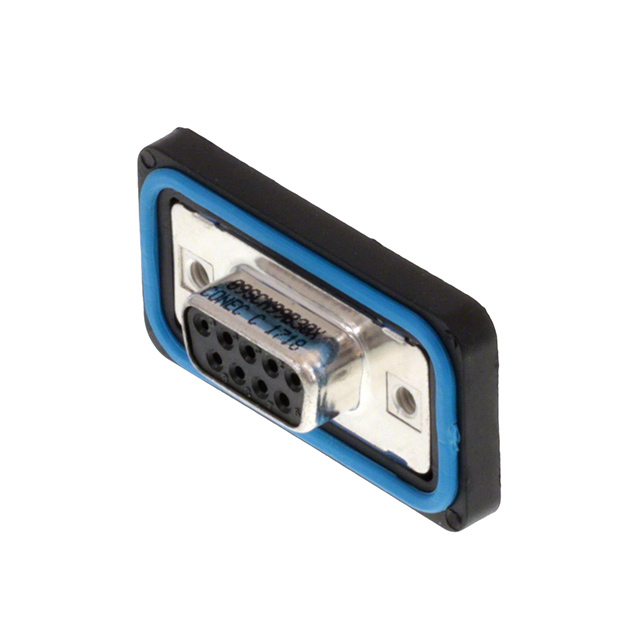

CONN D-SUB RCPT 9POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

4STD09SCM99B30X

Active

Amphenol CONEC

CONN D-SUB RCPT 9POS PNL MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4STD09SCM99B30X

Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Signal
Dielectric Material	Polyester, Glass Filled
Flange Feature	Housing/Shell (4-40)
Ingress Protection	IP67 - Dust Tight, Waterproof
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shell Material, Finish [custom]	Brass
Shell Material, Finish [custom]	Tin Plated
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1

4STD09S Series

Part	Number of Positions	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Type	Connector Type	Connector Style	Number of Rows	Wire Gauge	Dielectric Material	Ingress Protection	Contact Material	Flange Feature	Voltage Rating	Color	Shell Material, Finish	Contact Finish	Contact Finish Thickness	Mounting Type	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish [custom]	Shell Material, Finish [custom]
Amphenol CONEC 4STD09SAM99B30X	9	DE E	1	Signal	Receptacle Female Sockets	D-Sub	2
Amphenol CONEC 4STD09SAM99A10X	9	DE E	1	Signal	Receptacle Female Sockets	D-Sub	2	20 AWG	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Copper Alloy	Housing/Shell (Unthreaded)	125 VDC	Black	Copper Alloy Tin Plated	Gold	Flash	Free Hanging (In-Line)	7.5 A	UL94 V-0	-25 °C	105 ░C
Amphenol CONEC 4STD09SAU99S40X	9	DE E	1	Signal	Receptacle Female Sockets	D-Sub	2
Amphenol CONEC 4STD09SCR99E20X	9	DE E	1	Signal	Receptacle Female Sockets	D-Sub	2		Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof		4-40 Board Side		Black	Copper Alloy Tin Plated	Gold		Through Hole			-25 °C	105 ░C	Solder	0.76 Ám	30 Áin
Amphenol CONEC 4STD09SAR99A10X	9	DE E	1	Signal	Receptacle Female Sockets	D-Sub	2
Amphenol CONEC 4STD09SAR99B30X	9	DE E	1	Signal	Receptacle Female Sockets	D-Sub	2
Amphenol CONEC 4STD09SCM99B30X	9	DE E	1	Signal	Receptacle Female Sockets	D-Sub	2		Polyester Glass Filled	IP67 - Dust Tight Waterproof		Housing/Shell (4-40)				Gold					-25 °C	105 ░C		0.76 Ám	30 Áin	Brass	Tin Plated
Amphenol CONEC 4STD09SAR99E20X	9	DE E	1	Signal	Receptacle Female Sockets	D-Sub	2
Amphenol CONEC 4STD09SCR99B30X	9	DE E	1	Signal	Receptacle Female Sockets	D-Sub	2		Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof		Female Screwlock (4-40) Mating Side		Black	Copper Alloy Tin Plated	Gold		Through Hole			-25 °C	105 ░C	Solder	0.76 Ám	30 Áin
Amphenol CONEC 4STD09SAZ99S40X	9	DE E	1	Signal	Receptacle Female Sockets	D-Sub	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 23.33

Description

General part information

4STD09S Series

9 Position D-Sub Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

No documents available
