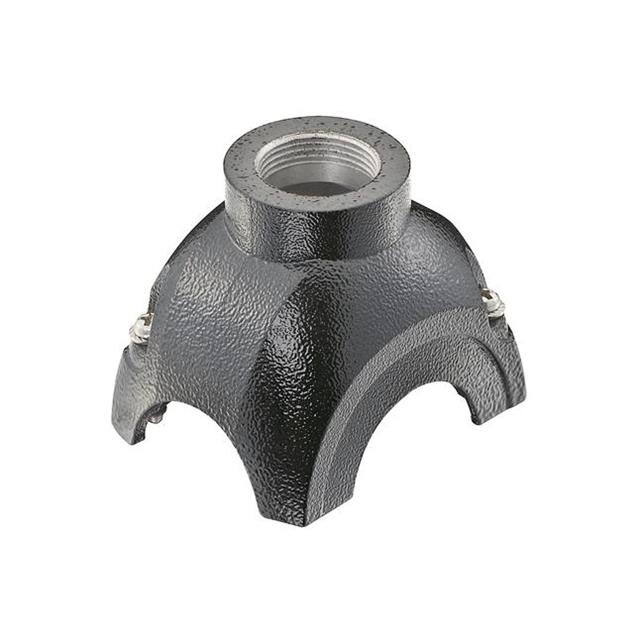

HAN-YELLOCK 30M HOOD TOP ENTRY M25 - OUTDOOR VERSION

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-YELLOCK 30M HOOD TOP ENTRY M25 - OUTDOOR VERSION

Technical Specifications

Parameters and characteristics for this part

Specification	11133001401

Connector Type	Hood - Shell
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP67, IP65
Lock Location	Push Button Snap Lock on Hood Carrier
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	72.7 mm
Size / Dimension [x]	2.862 in
Size / Dimension [y]	56 mm
Size / Dimension [y]	2.205 in
Size / Dimension [z]	60.2 mm
Size / Dimension [z]	2.37 in
Style	Top Entry
Thread Size	M25

Part	Thread Size	Housing Finish	Connector Type	Style	Lock Location	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Ingress Protection	Housing Color	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 11133001501	M25	Powder Coated	Hood - Shell	Side Entry	Push Button Snap Lock on Hood Carrier	72.7 mm	56 mm	2.862 in	63.4 mm	2.205 in	2.496 in	125 °C	-40 °C	Aluminum Die Cast	IP65 IP67	Gray
HARTING Technology Group 11133001601	M25	Powder Coated	Hood - Shell	Side Entry	Push Button Snap Lock on Hood Carrier	2.862 in	56 mm					125 °C	-40 °C	Aluminum Die Cast	IP65 IP67	Gray	67.5 mm	72.7 mm	2.205 "	2.657 in
HARTING Technology Group 11133001401	M25	Powder Coated	Hood - Shell	Top Entry	Push Button Snap Lock on Hood Carrier	72.7 mm		2.862 in		2.205 in	2.37 in	125 °C	-40 °C	Aluminum Die Cast	IP65 IP67	Gray			56 mm	60.2 mm
HARTING Technology Group 11133001702

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood - Shell Connector Top Entry M25 IP65/IP67 - Dust Tight, Water Resistant, Waterproof
