74AC11240DW
Active8-CH, 3-V TO 5.5-V INVERTERS WITH 3-STATE OUTPUTS
Deep-Dive with AI
Search across all available documentation for this part.
74AC11240DW
Active8-CH, 3-V TO 5.5-V INVERTERS WITH 3-STATE OUTPUTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 74AC11240DW |
|---|---|
| Current - Output High, Low | 24 mA |
| Logic Type | Inverting, Buffer |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 4 |
| Number of Elements | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 3-State |

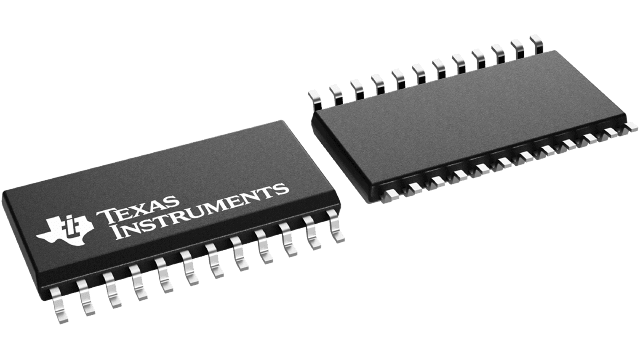

| Package / Case | 24-SOIC |
| Package / Case [custom] | 7.5 mm |
| Package / Case [custom] | 0.295 in |
| Supplier Device Package | 24-SOIC |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 325 | $ 2.98 | |
| Texas Instruments | TUBE | 1 | $ 3.70 | |
| 100 | $ 3.24 | |||
| 250 | $ 2.27 | |||
| 1000 | $ 1.83 | |||
Description
General part information
74AC11240 Series
This octal buffer/line driver is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. This device provides inverting outputs and symmetrical active-low output-enable () inputs. This device features high fan-out and improved fan-in.
The 74AC11240 is organized as two 4-bit buffers/line drivers with separateinputs. Whenis low, the device passes inverted data from the A inputs to the Y outputs. Whenis high, the outputs are in the high-impedance state.
The 74AC11240 is characterized for operation from -40°C to 85°C.
