C1343A.41.10

Active

Prysmian Group

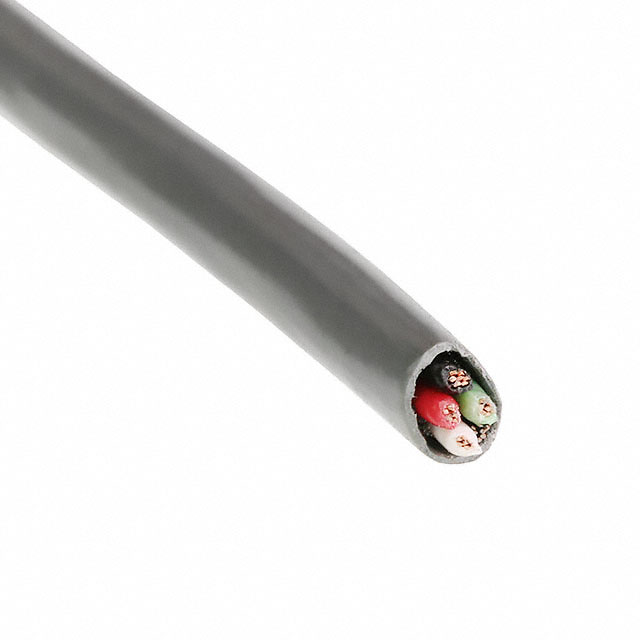

CABLE 4COND 20AWG GRAY

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 4COND 20AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	C1343A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand	16 strands, 7 Strands, 28 AWG, 30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.206 "
Jacket (Insulation) Diameter [diameter]	5.23 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Length [x]	30.5 m, 152.4 m
Length [x]	100 ft, 500 '
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Home, Audio-Video
Voltage	300 V
Wire Gauge	20 AWG

Part	Cable Type	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Conductor Insulation	Jacket Color	Length [x]	Length [x]	Jacket (Insulation) Material	Length	Length	Conductor Strand	Usage	Features	Conductor Material	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Prysmian Group C1343A.41.10	Multi-Conductor	20 AWG	-20 C	80 C	4	Polyethylene (PE)	Gray	30.5 m 152.4 m	100 ft 500 '	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	7 Strands 16 strands 28 AWG 30 AWG	Audio-Video Home	Drain Wire	Copper Tinned	300 V	0.206 "	5.23 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Gray 20 AWG 1000.0' (304.8m)

Technical documentation and resources

No documents available
