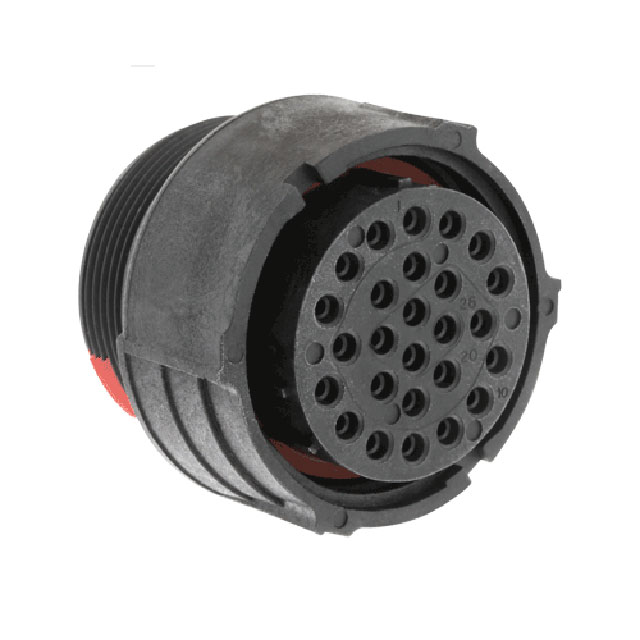

CL1F4103

Active

Souriau-Sunbank by Eaton

CONN PLG HSG FMALE 26POS INLINE

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN PLG HSG FMALE 26POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	CL1F4103

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp and Solder Cup
Fastening Type	Twist Latch
Features	Coupling Nut
Housing Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	26
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Thermoplastic, Halogen Free
Shell Size - Insert	4-1
Shielding	Unshielded
Type	For Female Sockets

Part	Contact Size	Fastening Type	Material Flammability Rating	Type	Orientation	Connector Type	Features	Shell Size - Insert	Number of Positions	Shell Material	Note	Housing Color	Insert Material	Ingress Protection	Contact Shape	Shielding	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Souriau-Sunbank by Eaton CL1F4103	16	Twist Latch	UL94 V-0	For Female Sockets	Keyed	Plug Housing	Coupling Nut	4-1	26	Thermoplastic Halogen Free	Contacts Not Included	Black	Thermoplastic	IP68 - Dust Tight Waterproof	Circular	Unshielded	Free Hanging (In-Line)	125 °C	-40 °C	Crimp and Solder Cup
Souriau-Sunbank by Eaton CL1F4203	16	Twist Latch	UL94 V-0	For Female Sockets	Keyed	Plug Housing	Coupling Nut		40	Thermoplastic Halogen Free	Contacts Not Included	Black	Thermoplastic	IP68 - Dust Tight Waterproof	Circular	Unshielded	Free Hanging (In-Line)	125 °C	-40 °C	Crimp and Solder Cup	2	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 22.85

General part information

26 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
