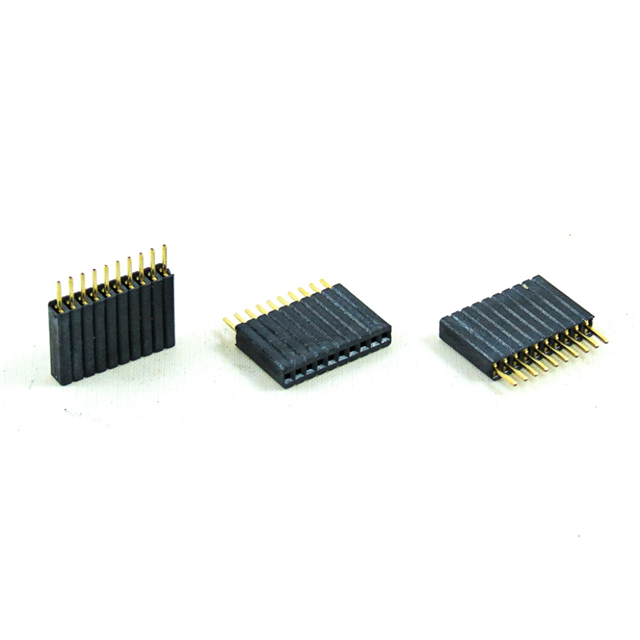

2246-1X21G00SU

Active

Oupiin

PCB SOCKET, SINGLE ROW, 21 PIN,

Search across all available documentation for this part.

Active

Oupiin

PCB SOCKET, SINGLE ROW, 21 PIN,

Technical Specifications

Parameters and characteristics for this part

Specification	2246-1X21G00SU

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Height	0.335 "
Insulation Height	8.5 mm
Insulation Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	21
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Termination	Solder

Part	Insulation Material	Contact Material	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Termination	Contact Finish Thickness - Mating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Rows	Mounting Type	Material Flammability Rating	Contact Type	Insulation Height	Insulation Height	Number of Positions	Contact Shape	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Pitch - Mating	Pitch - Mating
Oupiin 2246-1X21G00SU	Plastic	Copper Alloy	0.118 in	3 mm	All	Solder	Flash	Socket	-40 °C	105 ░C	Push-Pull	1	Through Hole	UL94 V-0	Female Socket	0.335 "	8.5 mm	21	Square	Gold	Flash	Gold	0.05 in	1.27 mm
Oupiin 2246-1X06G00SB	Plastic	Copper Alloy	0.118 in	3 mm	All	Solder	Flash	Socket	-40 °C	105 ░C	Push-Pull	1	Through Hole	UL94 V-0	Female Socket	0.335 "	8.5 mm	6	Square	Gold	Flash	Gold	0.05 in	1.27 mm
Oupiin 2246-1X17G00SU	Plastic	Copper Alloy	0.118 in	3 mm	All	Solder	Flash	Socket	-40 °C	105 ░C	Push-Pull	1	Through Hole	UL94 V-0	Female Socket	0.335 "	8.5 mm		Square	Gold	Flash	Gold	0.05 in	1.27 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

21 Position Socket Connector 0.050" (1.27mm) Through Hole Gold

Technical documentation and resources

No documents available
