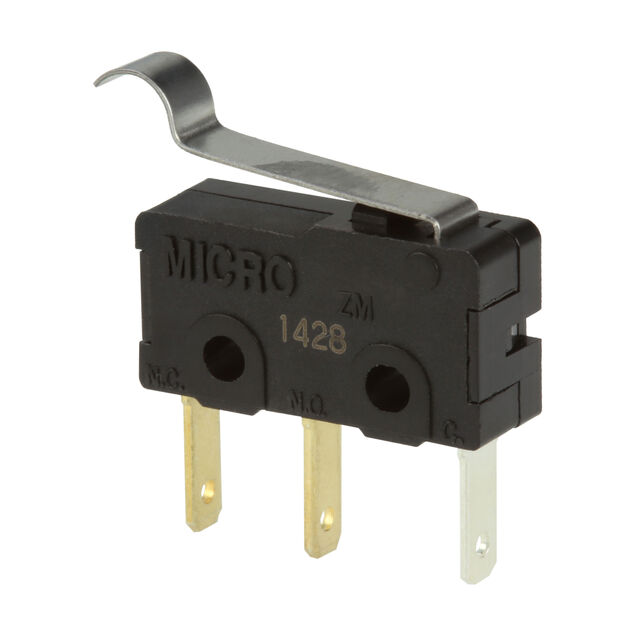

ZM10D70E01
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT SPDT 100MA 125V
Deep-Dive with AI
Search across all available documentation for this part.
ZM10D70E01
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT SPDT 100MA 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZM10D70E01 |
|---|---|
| Actuator Type | Simulated Roller, Lever |
| Circuit | SPDT |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 10000 Cycles |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 26 gf |
| Operating Position | 15.1 mm |
| Operating Position | 0.594 " |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.6 mm |
| Overtravel | 0.025 " |
| Pretravel | 0.205 in |
| Pretravel | 5.2 mm |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 1.83 | |
Description
General part information
ZM10D Series
Switch SPDT Chassis Mount
