WP7B-S070VA1-R8000
ActiveJAE Electronics

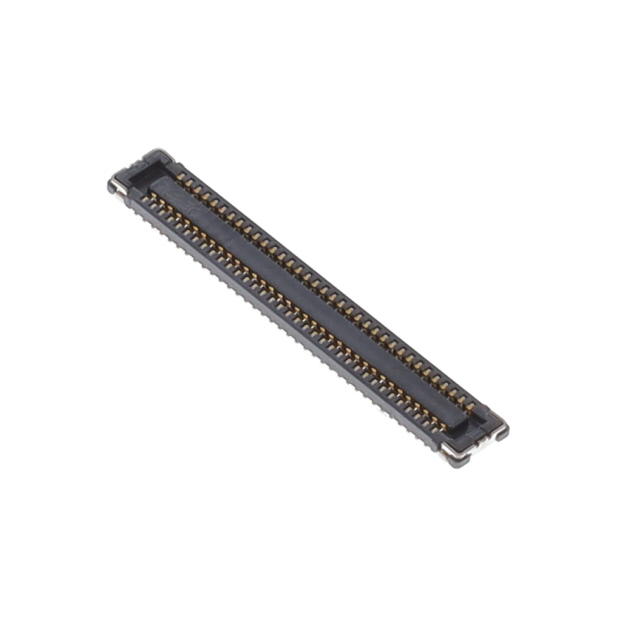

CONN RCPT 70POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
WP7B-S070VA1-R8000
ActiveJAE Electronics
CONN RCPT 70POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WP7B-S070VA1-R8000 |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention |
| Height Above Board [z] | 0.71 mm |
| Height Above Board [z] | 0.028 in |
| Mated Stacking Heights | 0.7 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 70 |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
