ANT6230LL01R1575A
ActivePulse Electronics

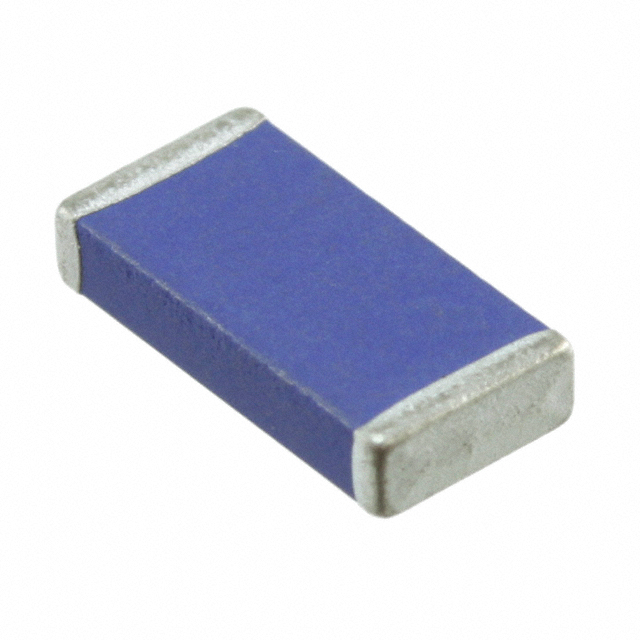

RF ANT 1.575GHZ CHIP SOLDER SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT6230LL01R1575A
ActivePulse Electronics
RF ANT 1.575GHZ CHIP SOLDER SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT6230LL01R1575A |
|---|---|
| Antenna Type | Chip |
| Applications | GPS |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.602 GHz |
| Frequency Range [Min] | 1.548 GHz |
| Gain | 2.52 dBi |
| Height (Max) [Max] | 1.25 mm |
| Height (Max) [Max] | 0.049 " |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 1 W |
| Return Loss | -10 dB |
| RF Family/Standard | Navigation |
| Termination | Solder |
