166-90213

Active

HELLERMANNTYTON

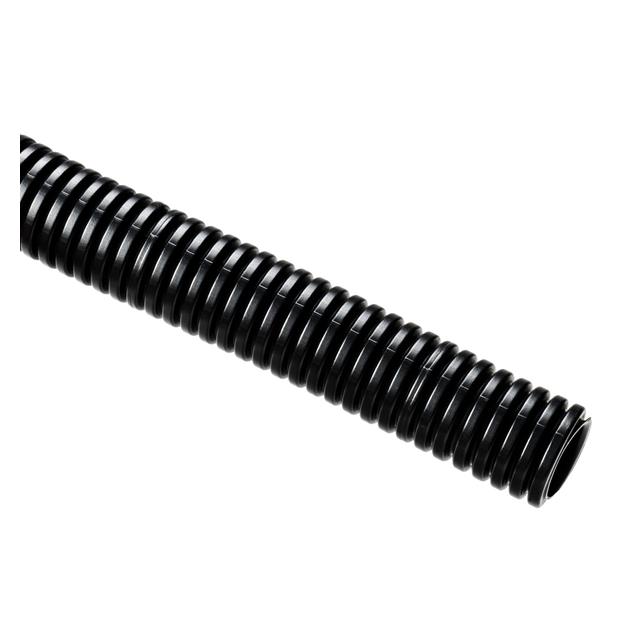

CONDUIT, NYLON 12 (POLYAMIDE 12), BLACK, 54.5 MM, HG-HI SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMaterials Guide for Bundling & Securing Datasheet +1

166-90213

Active

HELLERMANNTYTON

CONDUIT, NYLON 12 (POLYAMIDE 12), BLACK, 54.5 MM, HG-HI SERIES

Deep-Dive with AI

DocumentsMaterials Guide for Bundling & Securing Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	166-90213

Abrasion Protection	Abrasion Resistant
Color	Black
Diameter - Inside [diameter]	1.86 in
Diameter - Inside [diameter]	47.24 mm
Diameter - Outside [diameter]	2.15 in
Diameter - Outside [diameter]	54.6 mm
Environment Protection	UV Resistant
Features	Dust Resistant, Impact Resistant, Shock Resistant, Solvent Resistant, Self Extinguishing, Vibration Resistant
Length	15.24 m
Length [x]	50 ft
Liquid Protection	Oil Resistant, Fluid Resistant
Material	Polyamide (PA12), Nylon 12, Halogen Free
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-50 °C
Type	Protective Hose, Wire Loom
Type Attributes	Convoluted, Corrugated

166-90 Series

Spiral Wraps, Sleeves, Tubing & Conduit HG-FR0750 PA6 VO CONDUIT 100'

...

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Abrasion Protection	Liquid Protection	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Environment Protection	Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Type Attributes	Length	Length [x]	Type	Color	Accessory Type	Features [diameter]	Features [diameter]	For Use With/Related Products	Accessory Type
HELLERMANNTYTON 166-90213	2.15 in	54.6 mm	Abrasion Resistant	Fluid Resistant Oil Resistant	1.86 in	47.24 mm	UV Resistant	Polyamide (PA12) Nylon 12 Halogen Free	-50 °C	110 °C	Dust Resistant Impact Resistant Self Extinguishing Shock Resistant Solvent Resistant Vibration Resistant	Convoluted Corrugated	15.24 m	50 ft	Protective Hose Wire Loom	Black
HELLERMANNTYTON 166-90482								Chloroprene Rubber (CR)									Sealing Ring	0.75 in	19 mm
HELLERMANNTYTON 166-90189								Polyamide (PA66) Nylon 6/6									Conduit End Cap
HELLERMANNTYTON 166-90199	1.36 "	34.54 mm	Abrasion Resistant	Fluid Resistant Oil Resistant	1.12 in	28.45 mm		Halogen Free Nylon 6 Polyamide (PA6)	-40 °C	120 °C	Dust Resistant Self Extinguishing Solvent Resistant	Convoluted Corrugated	15.24 m	50 ft	Protective Hose Wire Loom	Black
HELLERMANNTYTON 166-90021								Polyamide (PA66) Nylon 6/6									Locknut			NPT 1" Thread - Cable Glands
HELLERMANNTYTON 166-90361								Brass Nickel Plated			1/2" NPT Thread						Adapter			Conduit Tubing
HELLERMANNTYTON 166-90011								Polyamide (PA66) Nylon 6/6												Conduit Tubing
HELLERMANNTYTON 166-90114								Polyamide (PA66) Nylon 6/6									Adapter				90 °
HELLERMANNTYTON 166-90359								Brass Nickel Plated									Locknut
HELLERMANNTYTON 166-90870								Polyamide (PA66) Nylon 6/6			IP68						Adapter				90 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 663.25
Newark	Spool of 50	1	$ 608.04
		5	$ 586.33
		10	$ 577.64
		25	$ 564.61
		50	$ 551.58
