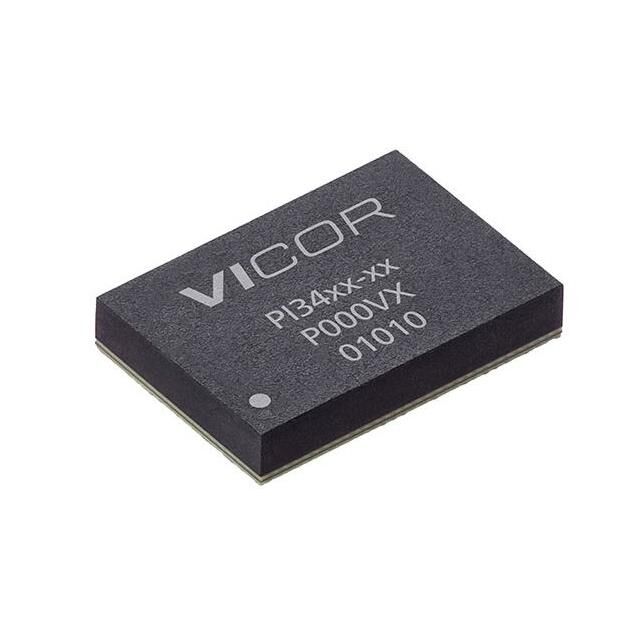

PI3422-00-LGIZ
ObsoleteVicor Corporation
IC REG BUCK ADJ/2.5V 15A 123LGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PI3422-00-LGIZ
ObsoleteVicor Corporation
IC REG BUCK ADJ/2.5V 15A 123LGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PI3422-00-LGIZ |
|---|---|
| Current - Output | 15 A |
| Frequency - Switching | 650 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable (Fixed) |
| Package / Case | 123-BLGA Module |
| Supplier Device Package | 123-LGA (14x10) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 8 V |
| Voltage - Output (Max) [Max] | 3.1 V |
| Voltage - Output (Min/Fixed) | 2 V |
| Voltage - Output (Min/Fixed) | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PI3422 Series
Buck Switching Regulator IC Positive Adjustable (Fixed) 2V (2.5V) 1 Output 15A 123-BLGA Module
Documents
Technical documentation and resources
