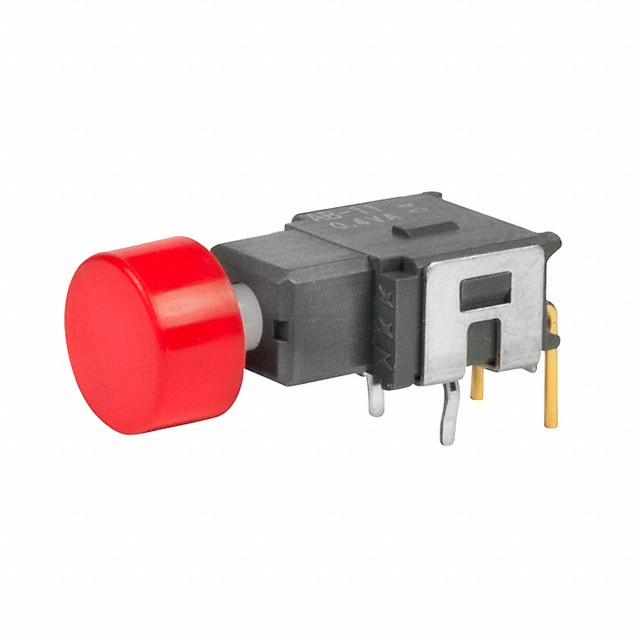

AB11AH-HC

Active

NKK Switches

PUSHBUTTON SWITCH, SEALED, SUBMINIATURE, AB SERIES, SPST-NO, OFF-(ON), ROUND, RED

Search across all available documentation for this part.

Active

NKK Switches

PUSHBUTTON SWITCH, SEALED, SUBMINIATURE, AB SERIES, SPST-NO, OFF-(ON), ROUND, RED

Technical Specifications

Parameters and characteristics for this part

Part	Circuit	Switch Function	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Termination Style	Current Rating (Amps)	Electrical Life	Voltage Rating - DC	Actuator Type	Voltage Rating - AC	Actuator Marking	Color - Actuator/Cap	Type
NKK Switches AB11AH-HC	SPST-NO	Off-Mom	Through Hole Right Angle	-30 ░C	85 °C	Sealed - Fully	PC Pin	0.4 VA	50000 Cycles	28 V	Button Round	28 V	No Marking	Red	Standard
NKK Switches AB11AH-HB	SPST-NO	Off-Mom	Through Hole Right Angle	-30 ░C	85 °C	Sealed - Fully	PC Pin	0.4 VA	50000 Cycles	28 V	Button Round	28 V	No Marking	White	Standard
NKK Switches AB11AH-HA	SPST-NO	Off-Mom	Through Hole Right Angle	-30 ░C	85 °C	Sealed - Fully	PC Pin	0.4 VA	50000 Cycles	28 V	Button Round	28 V	No Marking	Black	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Through Hole, Right Angle
