031-6499

Active

Amphenol RF

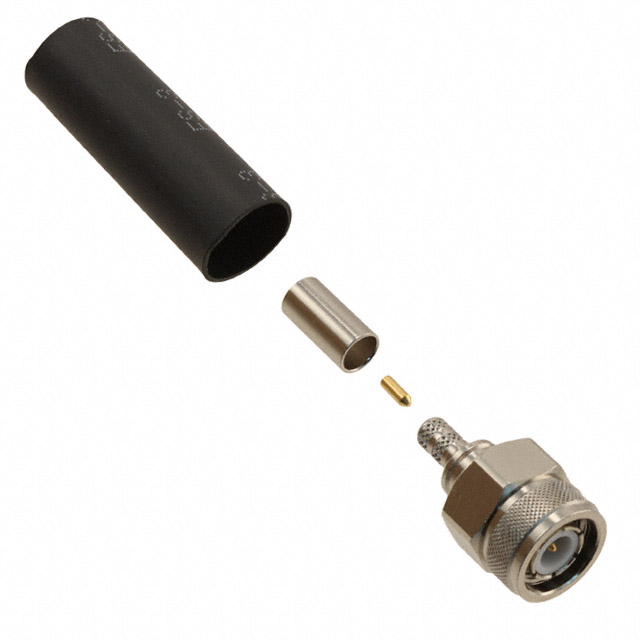

CONN TNC PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN TNC PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	031-6499

Body Finish	Nickel
Body Material	Brass
Cable Group	Belden 7807A, LMR-200
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Connector, 1 Contact, 1 Heat Shrink, 1 Insulator
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Contact Termination	Shield Termination	Includes	Number of Ports	Frequency - Max [Max]	Cable Group	Body Finish	Connector Style	Dielectric Material	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Mounting Type	Body Material	Mating Cycles	Housing Color	Center Contact Plating	Ingress Protection	Impedance	Connector Type
Amphenol RF 031-6499	Solder	Crimp	1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Insulator	1	6000 MHz	Belden 7807A LMR-200	Nickel	TNC	Polytetrafluoroethylene (PTFE)	Beryllium Copper Brass	85 °C	-40 °C	500 V	Free Hanging (In-Line)	Brass	500	Silver	Gold	IP67 - Dust Tight Waterproof	50 Ohms	Male Pin Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
