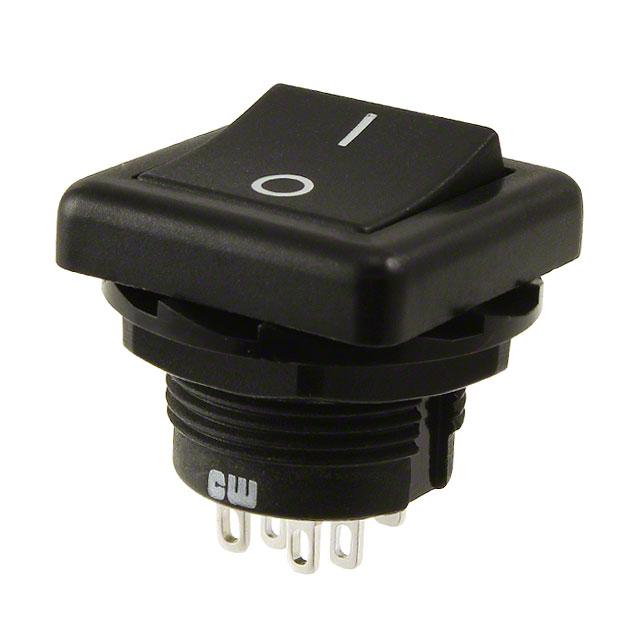

GRB136B05BB2

Active

CW Industries

SWITCH ROCKER DPDT 10A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH ROCKER DPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	GRB136B05BB2

Actuator Marking	O -
Actuator Type	Concave (Curved)
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	10 A
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Threaded Body with Nut
Panel Cutout Dimensions [diameter]	18.2 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Circuit	Mounting Type	Panel Cutout Dimensions [diameter]	Mechanical Life	Actuator Marking	Actuator Type	Termination Style	Voltage Rating - AC	Color - Actuator/Cap	Switch Function	Current Rating (Amps)
CW Industries GRB136B05BB2	DPDT	Panel Mount Threaded Body with Nut	18.2 mm	100000 Cycles	O -	Concave (Curved)	Solder Lug	125 V	Black	On-On	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 4.95

General part information

Rocker Switch DPDT 10A (AC) 125 V Panel Mount, Threaded Body with Nut

Technical documentation and resources

No documents available
