TGX.45.A.BI.01

Active

TAOGLAS

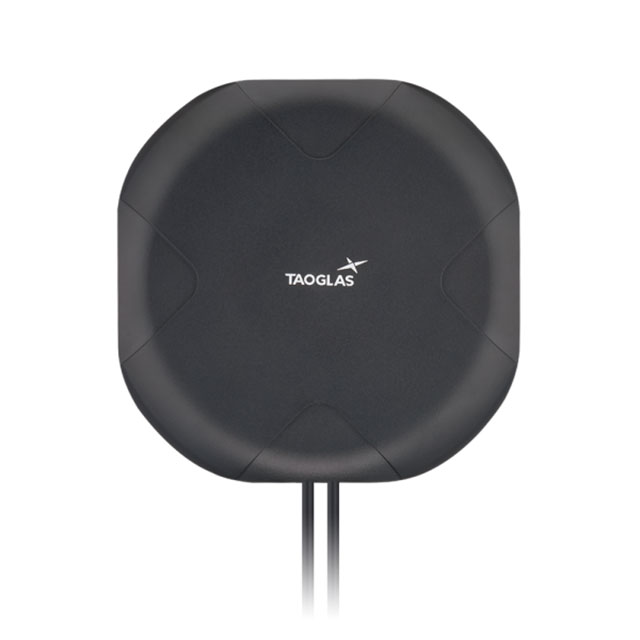

WIDEBAND 5G/4G 2*MIMO CROSS POLARIZED ANTENNA WITH MULTI-MOUNT BRACKET

Search across all available documentation for this part.

Active

TAOGLAS

WIDEBAND 5G/4G 2*MIMO CROSS POLARIZED ANTENNA WITH MULTI-MOUNT BRACKET

Technical Specifications

Parameters and characteristics for this part

Specification	TGX.45.A.BI.01

Applications	LTE, 4G, HSPA, HSPA+, 5G, WCDMA, 3G, Wi-Fi
Features	Cable
Features	3 m
Frequency (Center/Band)	892 MHz, 2.495 GHz, 657.5 MHz, 1.4725 GHz, 3.75 GHz, 752 MHz, 450 MHz, 5.5375 GHz, 1.955 GHz
Frequency Group	Wide Band
Frequency Range [Max]	6 GHz
Frequency Range [Min]	450 MHz
Gain	-2.5 dBi, -4.3 dB, -2.9 dBi, -4.2 dBi, -3.8 dBic, -2.6 dB, -2.7 dBi, -2.8 dB, -5 dBi
Ingress Protection	IP65
Mounting Type	Pole, Glass, Wall Mount
Number of Bands	9
Power - Max [Max]	10 W
RF Family/Standard	Cellular

Part	Ingress Protection	Features	Features	Gain	Power - Max [Max]	Frequency Group	Number of Bands	Applications	Frequency Range [Min]	Frequency Range [Max]	Frequency (Center/Band)	Mounting Type	RF Family/Standard
TAOGLAS TGX.45.A.BI.01	IP65	Cable	3 m	-5 dBi -4.3 dB -4.2 dBi -3.8 dBic -2.9 dBi -2.8 dB -2.7 dBi -2.6 dB -2.5 dBi	10 W	Wide Band	9	3G 4G 5G HSPA HSPA+ LTE WCDMA Wi-Fi	450 MHz	6 GHz	1.4725 GHz 1.955 GHz 2.495 GHz 3.75 GHz 5.5375 GHz 450 MHz 657.5 MHz 752 MHz 892 MHz	Glass Pole Wall Mount	Cellular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 62.59
		10	$ 62.32
Digikey	Box	1	$ 148.39

General part information

RF ANTENNA 3G, 4G, 5G, HSPA, HSPA+, LTE, WCDMA, Wi-Fi SMA Male Glass, Pole, Wall Mount
