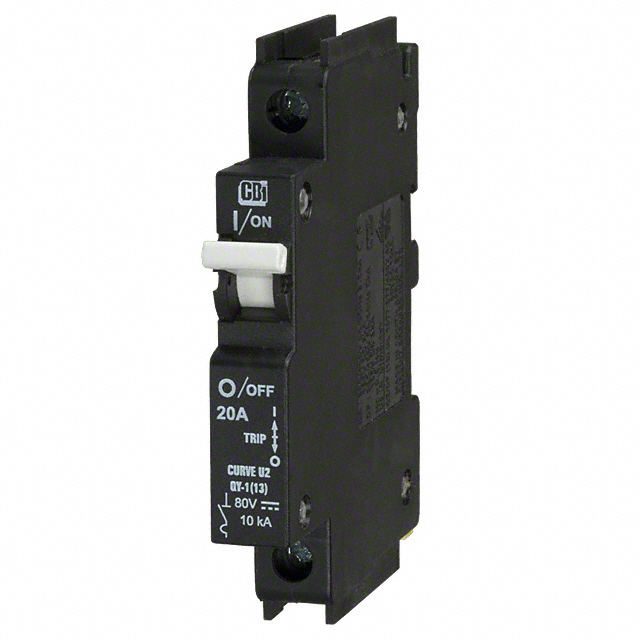

C20A1P-80VDC
ActiveAmerican Electrical Inc.
CIR BRKR MAG-HYDR 20A 80VDC
Deep-Dive with AI
Search across all available documentation for this part.
C20A1P-80VDC
ActiveAmerican Electrical Inc.
CIR BRKR MAG-HYDR 20A 80VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C20A1P-80VDC |
|---|---|
| Actuator Type | Lever |
| Approval Agency | UR, CE, UL489 |
| Breaker Type | Magnetic (Hydraulic Delay) |
| Current Rating (Amps) | 20 A |
| Mounting Type | DIN Rail |
| Number of Poles | 1 |
| Voltage Rating - DC | 80 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 30.27 | |
| 5 | $ 28.83 | |||
| 10 | $ 26.66 | |||
| 50 | $ 23.06 | |||
| 100 | $ 21.62 | |||
| 250 | $ 20.18 | |||
| 500 | $ 18.74 | |||
Description
General part information
C20A1P Series
Circuit Breaker Magnetic (Hydraulic Delay) 20A AC 80 V DC Lever DIN Rail
Documents
Technical documentation and resources
No documents available
