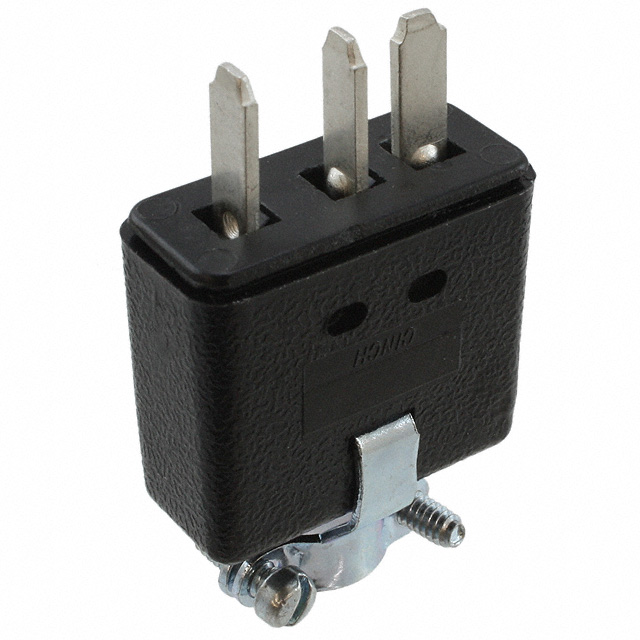

P-303H-CCT

Obsolete

Cinch Connectivity Solutions Trompeter

CONN PLUG 3POS IN-LINE SLDR

Search across all available documentation for this part.

Obsolete

Cinch Connectivity Solutions Trompeter

CONN PLUG 3POS IN-LINE SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	P-303H-CCT

Color	Black
Connector Type	Plug, Jones
Contact Finish	Tin
Contact Material	Brass
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Features	Cable Clamp, Hood
Material - Insulation	Phenol Formaldehyde (Phenolic)
Mounting Type	Free Hanging (In-Line)
Number of Rows	1
Operating Temperature	105 C
Termination	Solder Eyelet(s)
Voltage Rating	250 VDC

Part	Features	Termination	Operating Temperature	Number of Rows	Contact Finish	Contact Material	Current Rating (Amps)	Connector Type	Fastening Type	Color	Material - Insulation	Voltage Rating	Mounting Type
Cinch Connectivity Solutions Trompeter P-303-RP	Flange	Solder Eyelet(s)	105 C	1	Cadmium	Brass	10 A	Plug Jones	Push-Pull	Black	Phenol Formaldehyde (Phenolic)	250 VDC
Cinch Connectivity Solutions Trompeter P-303H-CCT	Cable Clamp Hood	Solder Eyelet(s)	105 C	1	Tin	Brass	10 A	Plug Jones	Push-Pull	Black	Phenol Formaldehyde (Phenolic)	250 VDC	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Plug, Jones Connector Solder Eyelet(s) Free Hanging (In-Line)
