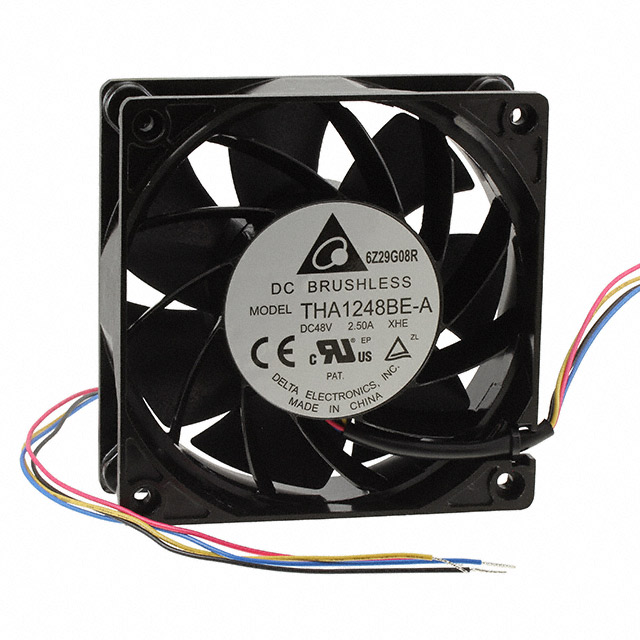

THA1248BE-AXHE

Obsolete

Delta Electronics

FAN AXIAL 120X38MM 48VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 120X38MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	THA1248BE-AXHE

Air Flow	302.8 CFM
Air Flow	8.48 m³/min
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	1.68 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	73.5 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	80.64 W
RPM	9000 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	845.4 Pa
Static Pressure	3.394 in H2O
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	75 VDC
Voltage Range [Min]	36 VDC
Weight	500 g
Weight	1.1 lbs
Width [y]	38 mm

Part	Material - Blade	Weight	Weight	Noise	Voltage - Rated [custom]	Features	Air Flow	Air Flow	Power (Watts)	Voltage Range [Max]	Voltage Range [Min]	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Material - Frame	Width [y]	Approval Agency	Lifetime @ Temp.	RPM	Static Pressure	Static Pressure	Bearing Type	Current Rating (Amps)	Termination
Delta Electronics THA1248BE-AXHE	Plastic	500 g	1.1 lbs	73.5 dB(A)	48 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	302.8 CFM	8.48 m³/min	80.64 W	75 VDC	36 VDC	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	120 mm	120 mm	Aluminum	38 mm	CE cURus TUV	70000 Hrs	9000 RPM	845.4 Pa	3.394 in H2O	Ball	1.68 A	4 Wire Leads
Delta Electronics THA1248BE	Plastic	500 g	1.1 lbs	72 dB(A)	48 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)			99.36 W	60 V	36 VDC	Tubeaxial	60 °C	60 °C	-10 °C	-10 °C	120 mm	120 mm	Aluminum	38 mm	CE cURus TUV	70000 Hrs	7600 RPM	770 Pa	3.091 in H2O	Ball	2.07 A	4 Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 48VDC Square - 120mm L x 120mm H Ball 302.8 CFM (8.48m³/min) 4 Wire Leads
