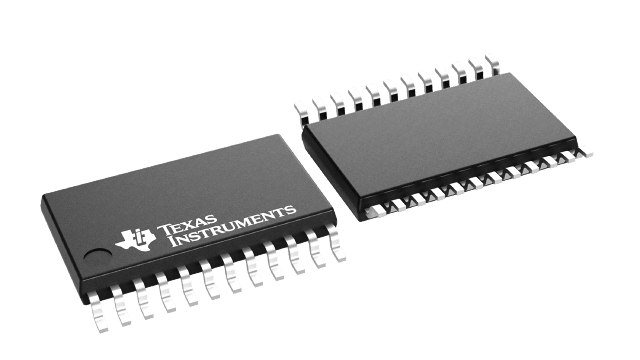

UCC5606PWPTR

Active

Texas Instruments

LOWEST CAPACITANCE 9-LINE 3 TO 5-V SE TERMINATOR FOR SCSI THROUGH ULTRA SCSI WITH REVERSE DISCONNECT

Deep-Dive with AI

Search across all available documentation for this part.

Documents9-Line 3-5 Volt SCSI Active Terminator, Reverse Disconnect datasheet (Rev. A)Datasheet

UCC5606PWPTR

Active

Texas Instruments

LOWEST CAPACITANCE 9-LINE 3 TO 5-V SE TERMINATOR FOR SCSI THROUGH ULTRA SCSI WITH REVERSE DISCONNECT

Deep-Dive with AI

Documents9-Line 3-5 Volt SCSI Active Terminator, Reverse Disconnect datasheet (Rev. A)Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UCC5606PWPTR

Mounting Type	Surface Mount
Number of Terminations	9
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	0.173 in, 4.4 mm
Package / Case	24-PowerTSSOP
Supplier Device Package	24-HTSSOP
Type	SCSI
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	2.7 V

UCC5606 Series

Lowest capacitance 9-line 3 to 5-V SE terminator for SCSI through Ultra SCSI with reverse disconnect

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Type	Number of Terminations	Mounting Type	Package / Case	Package / Case
Texas Instruments UCC5606PWPTR	5.25 V	2.7 V	24-HTSSOP	70 °C	0 °C	SCSI	9	Surface Mount	0.173 in 4.4 mm	24-PowerTSSOP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.77
		10	$ 4.29
		25	$ 4.05
		100	$ 3.51
		250	$ 3.33
		500	$ 2.99
		1000	$ 2.52
	Digi-Reel®	1	$ 4.77
		10	$ 4.29
		25	$ 4.05
		100	$ 3.51
		250	$ 3.33
		500	$ 2.99
		1000	$ 2.52
	Tape & Reel (TR)	2000	$ 2.23
Texas Instruments	LARGE T&R	1	$ 3.96
		100	$ 3.47
		250	$ 2.43
		1000	$ 1.96

Description

General part information

UCC5606 Series

The UCC5606 provides 9 lines of active termination for a small computer systems interface (SCSI) parallel bus. The SCSI standard recommends active termination at both ends of the cable segment.

The UCC5606 is ideal for high performance 3.3-V SCSI systems. The key features contributing to such low operating voltage are the 0.1-V drop out regulator and the 2.7-V reference. During disconnect the supply current is typically only 0.5 µA, which makes the device attractive for battery powered systems.

The UCC5606 is designed with an ultra-low channel capacitance of 1.8 pF, which eliminates effects on signal integrity from disconnected terminators at interim points on the bus.
