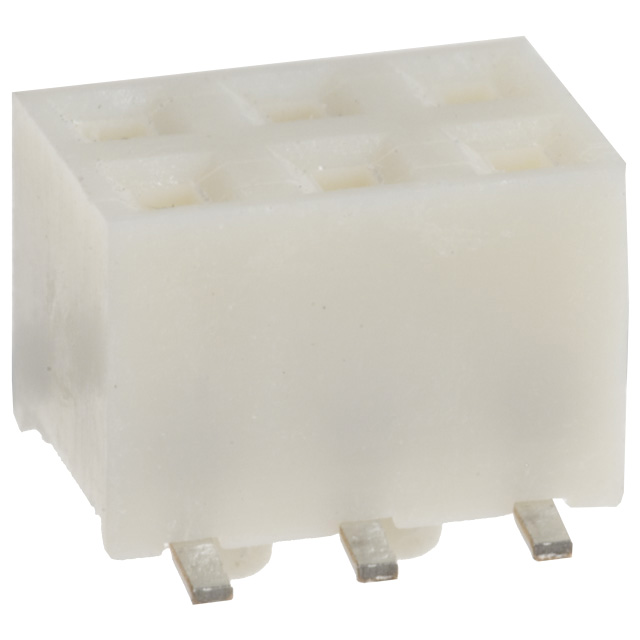

A3A-6DA-2SV(71)

Active

Hirose Electric USA, Inc.

2.0MM PITCH DOUBLE ROW MINIATURE CONNECTORS

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

2.0MM PITCH DOUBLE ROW MINIATURE CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Specification	A3A-6DA-2SV(71)

Applications	Telecommunications, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Brown
Insulation Height [z]	0.165 in
Insulation Height [z]	4.2 mm
Insulation Material	Polyphenylene Sulfide (PPS)
Mated Stacking Heights	6 mm, 5.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

Part	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Features	Contact Type	Mated Stacking Heights	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Mounting Type	Termination	Style	Insulation Material	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Mating	Number of Positions	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Connector Type	Contact Material	Contact Shape
Hirose Electric USA, Inc. A3A-6DA-2SV(71)	0.165 in	4.2 mm	UL94 V-0	Board Guide	Female Socket	5.1 mm 6 mm	2	1 çm	39.4 çin	0.079 in	2 mm	Brown	Surface Mount	Solder	Board to Board Cable	Polyphenylene Sulfide (PPS)	Push-Pull	0.079 in	2 mm	Gold	6	Tin	85 °C	-55 °C	General Purpose Telecommunications	0.203 Ám	8 Áin	All	Receptacle	Phosphor Bronze	Square
Hirose Electric USA, Inc. A3A-6DA-2SV	0.165 in	4.2 mm	UL94 V-0	Board Guide	Female Socket	5.1 mm 6 mm	2	1 çm	39.4 çin	0.079 in	2 mm	Brown	Surface Mount	Solder	Board to Board Cable	Polyphenylene Sulfide (PPS)	Push-Pull	0.079 in	2 mm	Gold	6	Tin	85 °C	-55 °C	General Purpose Telecommunications	0.203 Ám	8 Áin	All	Receptacle	Phosphor Bronze	Square

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
