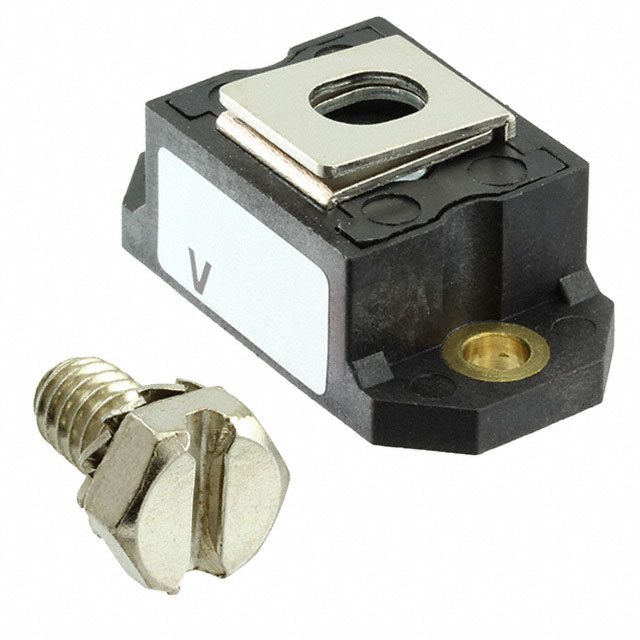

VS-243NQ100PBF

Active

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 100V 240A D-67

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 100V 240A D-67

Technical Specifications

Parameters and characteristics for this part

Specification	VS-243NQ100PBF

Capacitance @ Vr, F	5500 pF
Current - Average Rectified (Io)	240 A
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	D-67 HALF-PAK
Speed	200 mA, 500 ns
Supplier Device Package	D-67 HALF-PAK
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	950 mV

Part	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Capacitance @ Vr, F	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Supplier Device Package	Speed	Voltage - Forward (Vf) (Max) @ If	Technology	Mounting Type	Voltage - Forward (Vf) (Max) @ If [Max]
Vishay General Semiconductor - Diodes Division VS-243NQ100PBF	D-67 HALF-PAK	100 V	5500 pF	175 ░C	-55 C	240 A	D-67 HALF-PAK	200 mA 500 ns	950 mV	Schottky	Chassis Mount
Vishay General Semiconductor - Diodes Division 243NQ100	D-67 HALF-PAK	100 V	5500 pF			240 A	D-67 HALF-PAK	200 mA 500 ns		Schottky	Chassis Mount	860 mV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 100 V 240A Chassis Mount D-67 HALF-PAK
