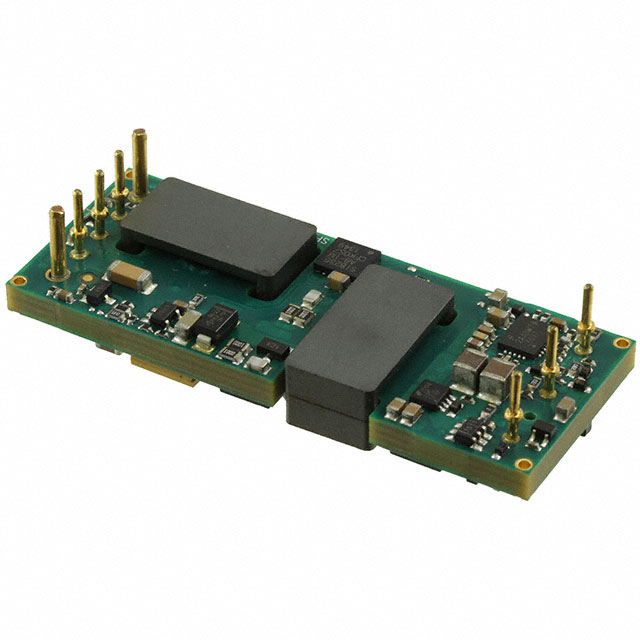

UWE-12/10-Q12P-C

Murata Power Solutions Inc.

DC DC CONVERTER 12V 120W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UWE-12/10-Q12P-C

Murata Power Solutions Inc.

DC DC CONVERTER 12V 120W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UWE-12/10-Q12P-C

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	10 A
Efficiency	90 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-DIP Module, 1/8 Brick
Power (Watts)	120 W
Size / Dimension [x]	2.3 in
Size / Dimension [x]	58.4 mm
Size / Dimension [y]	0.9 "
Size / Dimension [y]	22.9 mm
Size / Dimension [z]	8.6 mm
Size / Dimension [z]	0.34 in
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V

UWE-12 Series

Part	Type	Current - Output (Max) [Max]	Voltage - Output 1	Voltage - Isolation	Control Features	Number of Outputs	Power (Watts)	Voltage - Input (Max) [Max]	Mounting Type	Features	Package / Case	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]
Murata Power Solutions Inc. UWE-12/6-Q48PB-C	Isolated Module	6 A	12 V	2250 VDC	Active High Enable	1	72 W	75 V	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	1/8 Brick 8-DIP Module	91 %	2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	ITE (Commercial)	85 °C	-40 °C	18 V
Murata Power Solutions Inc. UWE-12/6-Q12NB-C	Isolated Module	6 A	12 V	1.5 kV	Active Low Enable	1	72 W	36 V	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	1/8 Brick 8-DIP Module	91.5 %	2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	ITE (Commercial)	85 °C	-40 °C	9 V
Murata Power Solutions Inc. UWE-12/6-Q48P-C	Isolated Module	6 A	12 V	2250 VDC	Active High Enable	1	72 W	75 V	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	1/8 Brick 8-DIP Module	91 %	2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	ITE (Commercial)	85 °C	-40 °C	18 V
Murata Power Solutions Inc. UWE-12/10-Q12N-C	Isolated Module	10 A	12 V	1.5 kV	Active Low Enable	1	120 W	36 V	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	1/8 Brick 8-DIP Module		2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	ITE (Commercial)	85 °C	-40 °C	9 V
Murata Power Solutions Inc. UWE-12/10-Q12P-C	Isolated Module	10 A	12 V	1.5 kV	Active High Enable	1	120 W	36 V	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	1/8 Brick 8-DIP Module	90 %	2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	ITE (Commercial)	85 °C	-40 °C	9 V
Murata Power Solutions Inc. UWE-12/6-Q48N-C	Isolated Module	6 A	12 V	2250 VDC	Active Low Enable	1	72 W	75 V	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	1/8 Brick 8-DIP Module	91 %	2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	ITE (Commercial)	85 °C	-40 °C	18 V
Murata Power Solutions Inc. UWE-12/6-Q12N-C	Isolated Module	6 A	12 V	1.5 kV	Active Low Enable	1	72 W	36 V	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	1/8 Brick 8-DIP Module	91.5 %	2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	ITE (Commercial)	85 °C	-40 °C	9 V
Murata Power Solutions Inc. UWE-12/10-Q48P-C	Isolated Module	10 A	12 V	2250 VDC	Active High Enable	1	120 W	75 V	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	1/8 Brick 8-DIP Module	91.5 %	2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	ITE (Commercial)	85 °C	-40 °C	18 V
