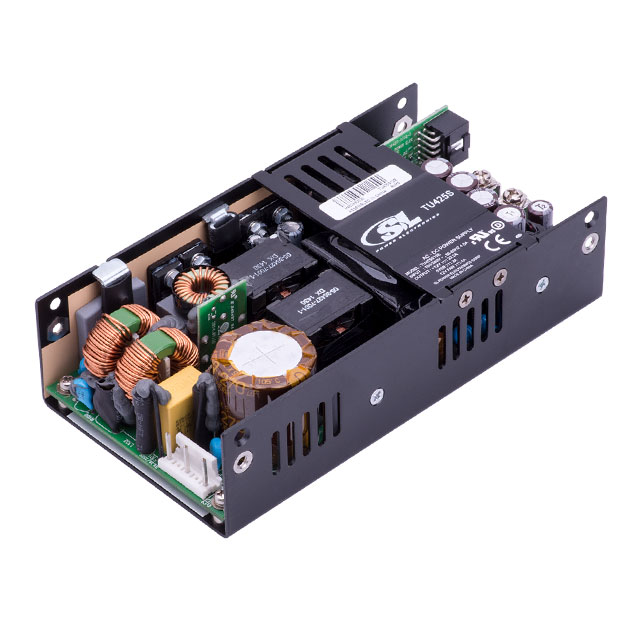

TU425S48E

Active

SL POWER / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 48V 5.9(CONVECTION)A/8.4(FORCED AIR)A 425W 19-PIN

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 48V 5.9(CONVECTION)A/8.4(FORCED AIR)A 425W 19-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	TU425S48E

Applications	ITE (Commercial)
Approval Agency	cURus, DEMKO, CE
Efficiency	90 %
Features	Remote Sense, DC Input Capable, Standby Output, Universal Input, Load Sharing
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	425 W, 300 W
Size / Dimension [x]	157.4 mm
Size / Dimension [x]	6.2 in
Size / Dimension [y]	3.3 in
Size / Dimension [y]	83.8 mm
Size / Dimension [z]	41.1 mm
Size / Dimension [z]	1.62 in
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	48 V

Part	Applications	Voltage - Output 1	Voltage - Isolation	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Power (Watts)	Type	Mounting Type	Number of Outputs	Current - Output 1	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Standard Number	Features
SL POWER / Advanced Energy TU425S48EC	ITE (Commercial)	48 V	3000 V	90 %	90 VAC 120 VDC	264 VAC 300 VDC	312 W	182 W	Enclosed	Chassis Mount	1	3.8 A	157.5 mm	6.2 in	3.3 in	83.8 mm	1.62 in	41.1 mm	-10 °C	70 °C	CE cURus DEMKO	60950-1	Adjustable Output PFC Remote Sense Standby Output Universal Input
SL POWER / Advanced Energy TU425S48E	ITE (Commercial)	48 V	4000 V	90 %	90 VAC	264 VAC		300 W 425 W	Open Frame	Chassis Mount	1		157.4 mm	6.2 in	3.3 in	83.8 mm	1.62 in	41.1 mm	-10 °C	70 °C	CE cURus DEMKO		DC Input Capable Load Sharing Remote Sense Standby Output Universal Input
SL POWER / Advanced Energy TU425S48EF	ITE (Commercial)	48 V	3000 V	90 %	90 VAC 120 VDC	264 VAC 300 VDC		403 W	Enclosed	Chassis Mount	1	8.4 A	157.5 mm	6.2 in	3.3 in	83.8 mm	1.62 in	41.1 mm	-10 °C	70 °C	CE cURus DEMKO	60950-1	Adjustable Output PFC Remote Sense Standby Output Universal Input
