BNC7T-J-P-GN-RA-BH2D - BNC7T-J-P-GN-RA-BH2D

BNC7T-J-P-GN-RA-BH2D

Active
Samtec Inc.

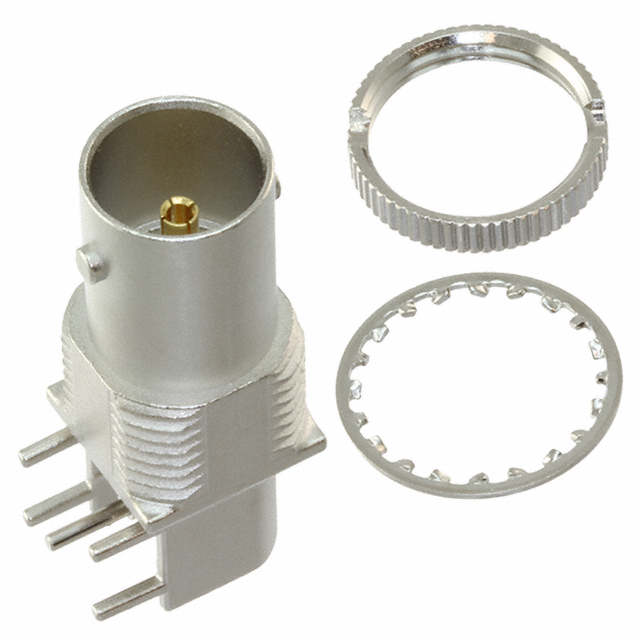

RF / COAXIAL CONNECTOR, BNC COAXIAL, RIGHT ANGLE BULKHEAD JACK, THROUGH HOLE RIGHT ANGLE, 75 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBNC7T DatasheetDatasheet+1
BNC7T-J-P-GN-RA-BH2D - BNC7T-J-P-GN-RA-BH2D

BNC7T-J-P-GN-RA-BH2D

Active
Samtec Inc.

RF / COAXIAL CONNECTOR, BNC COAXIAL, RIGHT ANGLE BULKHEAD JACK, THROUGH HOLE RIGHT ANGLE, 75 OHM

Deep-Dive with AI

DocumentsBNC7T DatasheetDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationBNC7T-J-P-GN-RA-BH2D
Body FinishNickel
Body MaterialZinc
Center Contact MaterialCopper Alloy
Center Contact PlatingGold
Connector StyleBNC
Connector TypeFemale Socket, Jack
Contact TerminationSolder
Dielectric MaterialPolymethylpentene (PMP)
Fastening TypeBayonet Lock
Frequency - Max [Max]12 GHz
Housing ColorSilver
Impedance75 Ohms
Includes1 Nut, 1 Connector, 1 Lockwasher
Mounting FeatureBulkhead - Front Side Nut
Mounting TypeThrough Hole, Right Angle, Panel Mount
Number of Ports1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-65 ░C
Shield TerminationSolder
Voltage Rating500 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 10.09
10$ 7.74
25$ 6.99
50$ 6.48
100$ 6.02
250$ 5.48
500$ 5.11
1000$ 4.78
NewarkEach 1$ 7.92
10$ 7.39
100$ 6.28
250$ 5.39
500$ 4.97
1000$ 4.66

Description

General part information

BNC7T-J Series

BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
