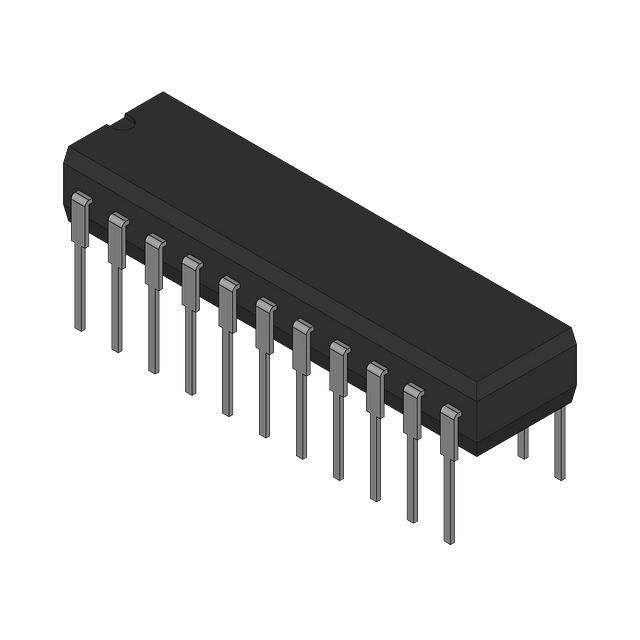

MWS5101AEL2

Active

Harris Corporation

IC SRAM 1KBIT PARALLEL 22DIP

Search across all available documentation for this part.

Active

Harris Corporation

IC SRAM 1KBIT PARALLEL 22DIP

Technical Specifications

Parameters and characteristics for this part

Part	Access Time	Write Cycle Time - Word, Page	Memory Organization	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Memory Interface	Memory Format	Operating Temperature [Max]	Memory Type	Mounting Type	Package / Case	Technology	Memory Size	Package / Case	Package / Case
Harris Corporation MWS5101ADL3	350 ns	400 ns	256 x 4	4.5 V	5.5 V	22-CDIP SB	Parallel	SRAM	70 °C	Volatile	Through Hole	22-CDIP	SRAM - Asynchronous	128 B
Harris Corporation MWS5101AEL3	350 ns	400 ns	256 x 4	4.5 V	5.5 V	22-PDIP	Parallel	SRAM	70 °C	Volatile	Through Hole	22-DIP	SRAM - Asynchronous	128 B	10.16 mm	10.16 mm
Harris Corporation MWS5101AEL2	250 ns	300 ns	256 x 4	4.5 V	5.5 V	22-PDIP	Parallel	SRAM	70 °C	Volatile	Through Hole	22-DIP	SRAM - Asynchronous	128 B	10.16 mm	10.16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	35	$ 8.66

General part information

SRAM - Asynchronous Memory IC 1Kbit Parallel 250 ns 22-PDIP

Technical documentation and resources

No documents available
