5510401F
ActiveDIALIGHT
10MA 10MCD RED 2V PLUGIN LED INDICATION - DISCRETE ROHS
Deep-Dive with AI
Search across all available documentation for this part.
5510401F
ActiveDIALIGHT
10MA 10MCD RED 2V PLUGIN LED INDICATION - DISCRETE ROHS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5510401F |
|---|---|
| Color | Red |
| Configuration | Single |
| Current | 10 mA |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Type | Tinted, Diffused |
| Millicandela Rating | 10 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 60 ° |
| Voltage Rating | 2 V |
| Wavelength - Peak | 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
5510401 Series

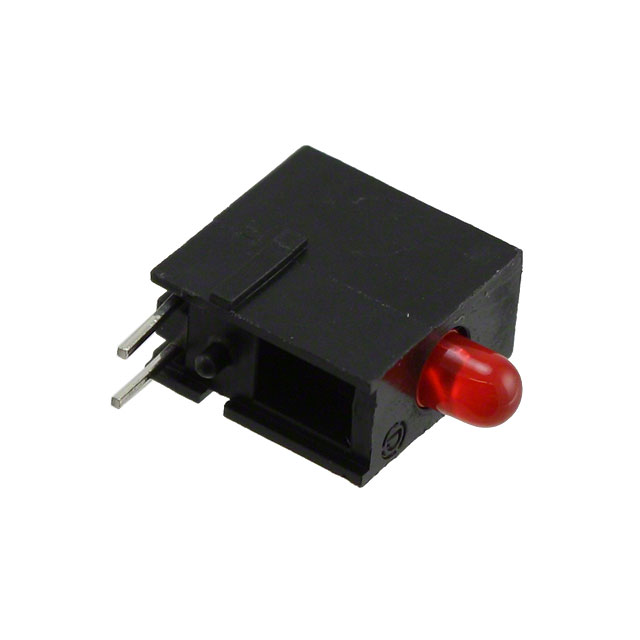

LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 2V 10mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
Documents
Technical documentation and resources
